Test 45A - Diagnosing Liftgate Ajar Circuit

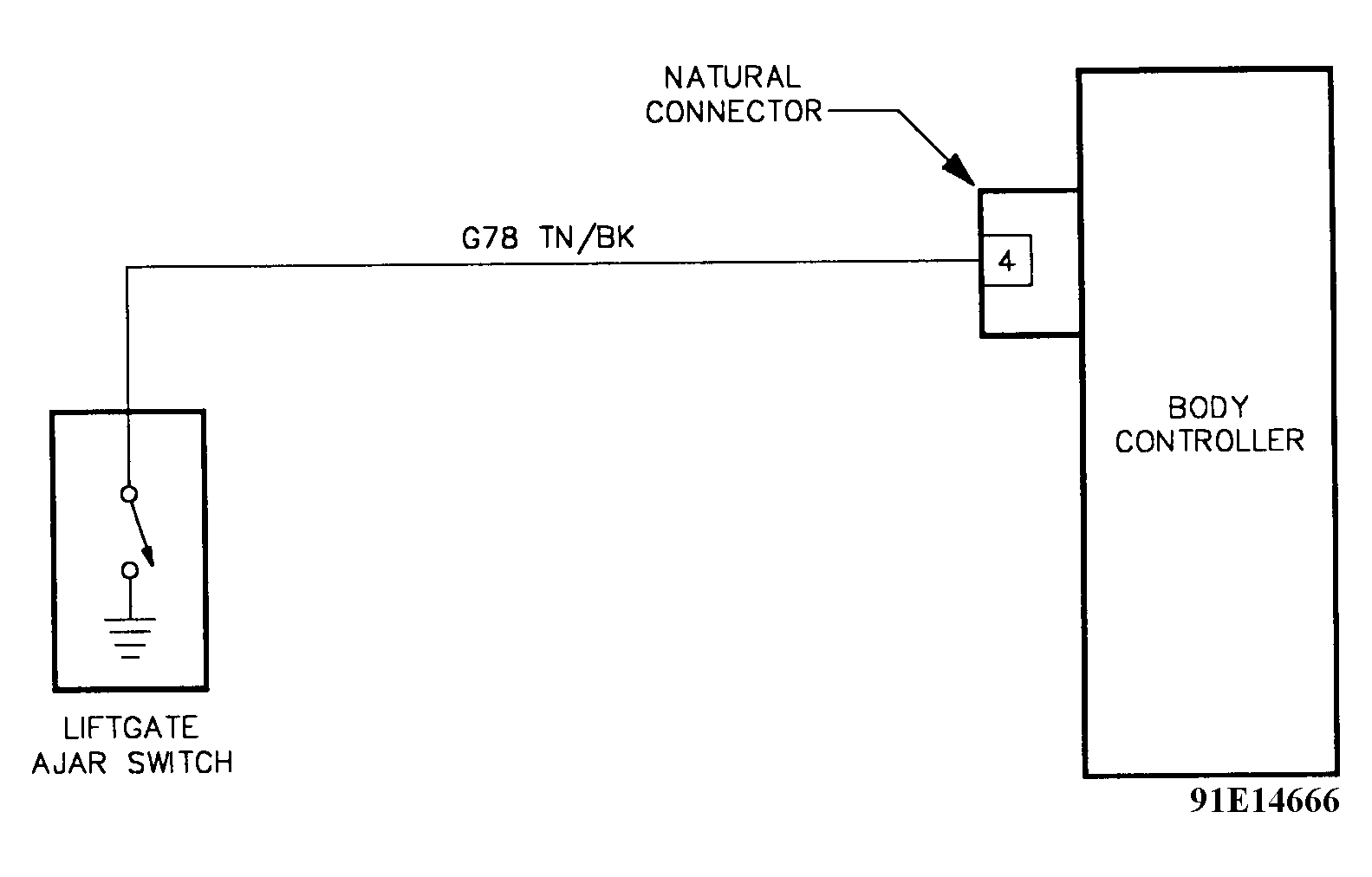

Fig 1: Test 45A Schematic - Diagnosing Liftgate Ajar Circuit
G91E14666

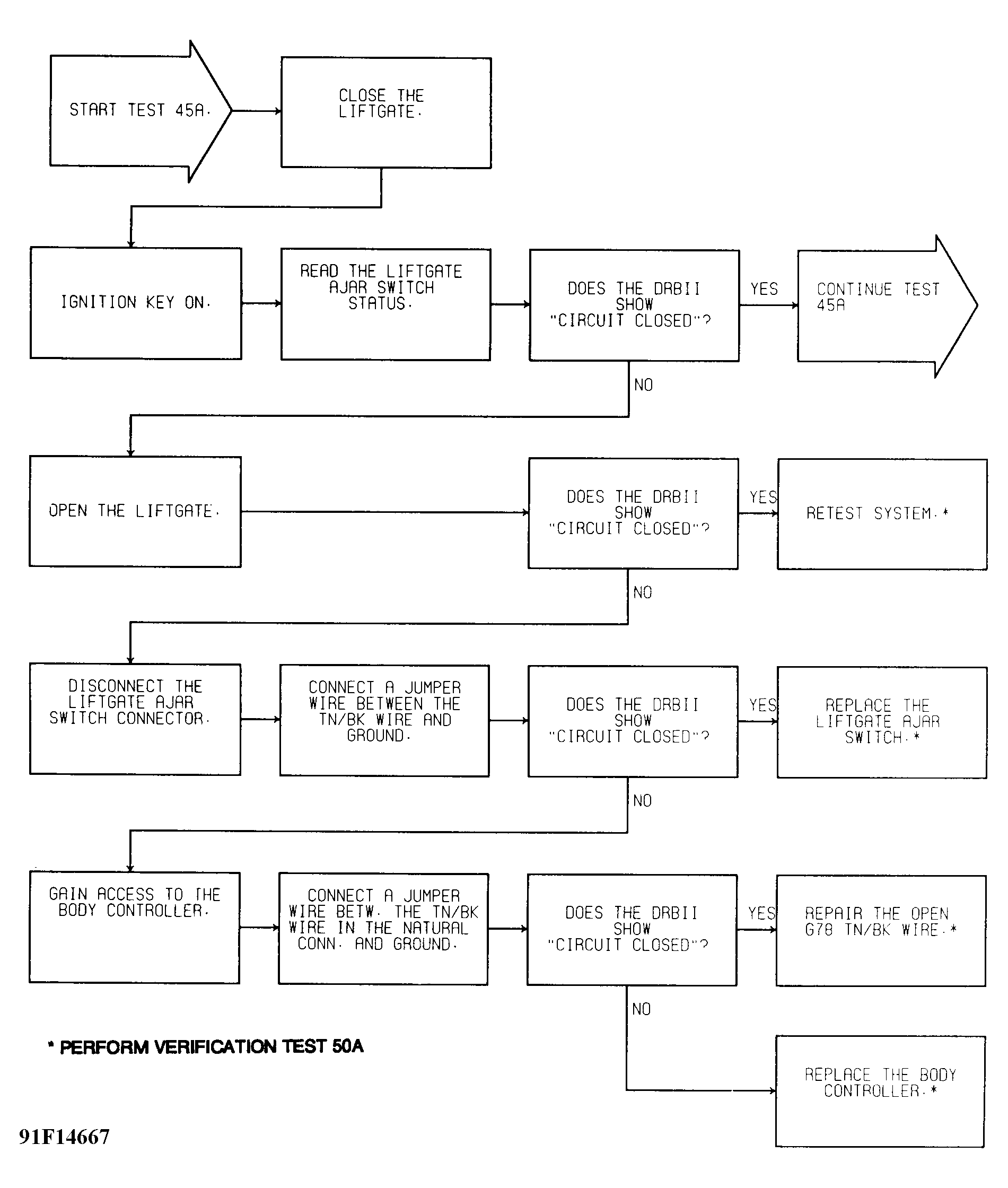

Fig 2: Test 45A Flow Chart (1 of 2) - Diagnosing Liftgate Ajar Circuit
G91F14667

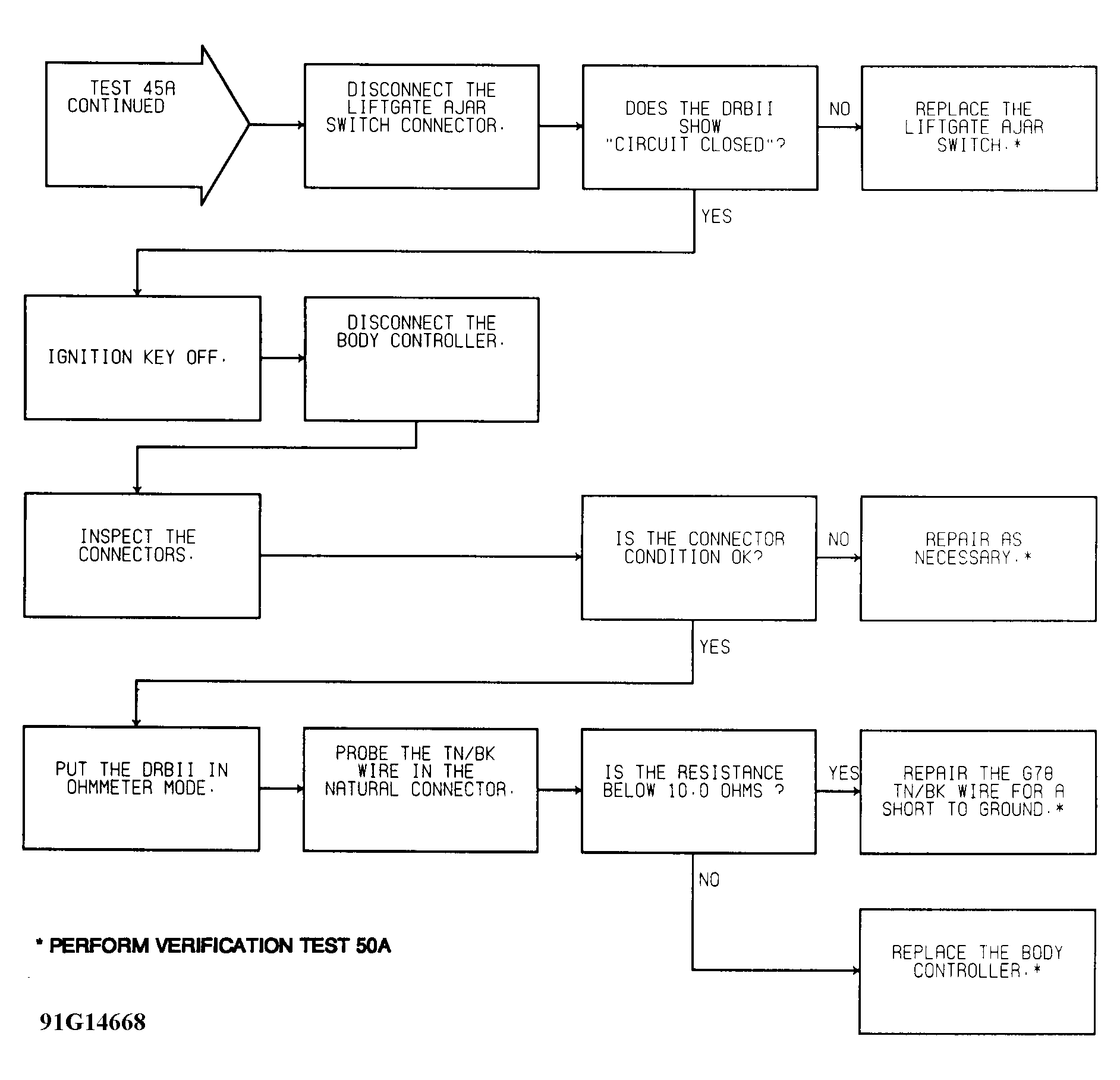

Fig 3: Test 45A Flow Chart (2 of 2) - Diagnosing Liftgate Ajar Circuit
G91G14668
