Test 36A - Checking Key In Lamp Circuit

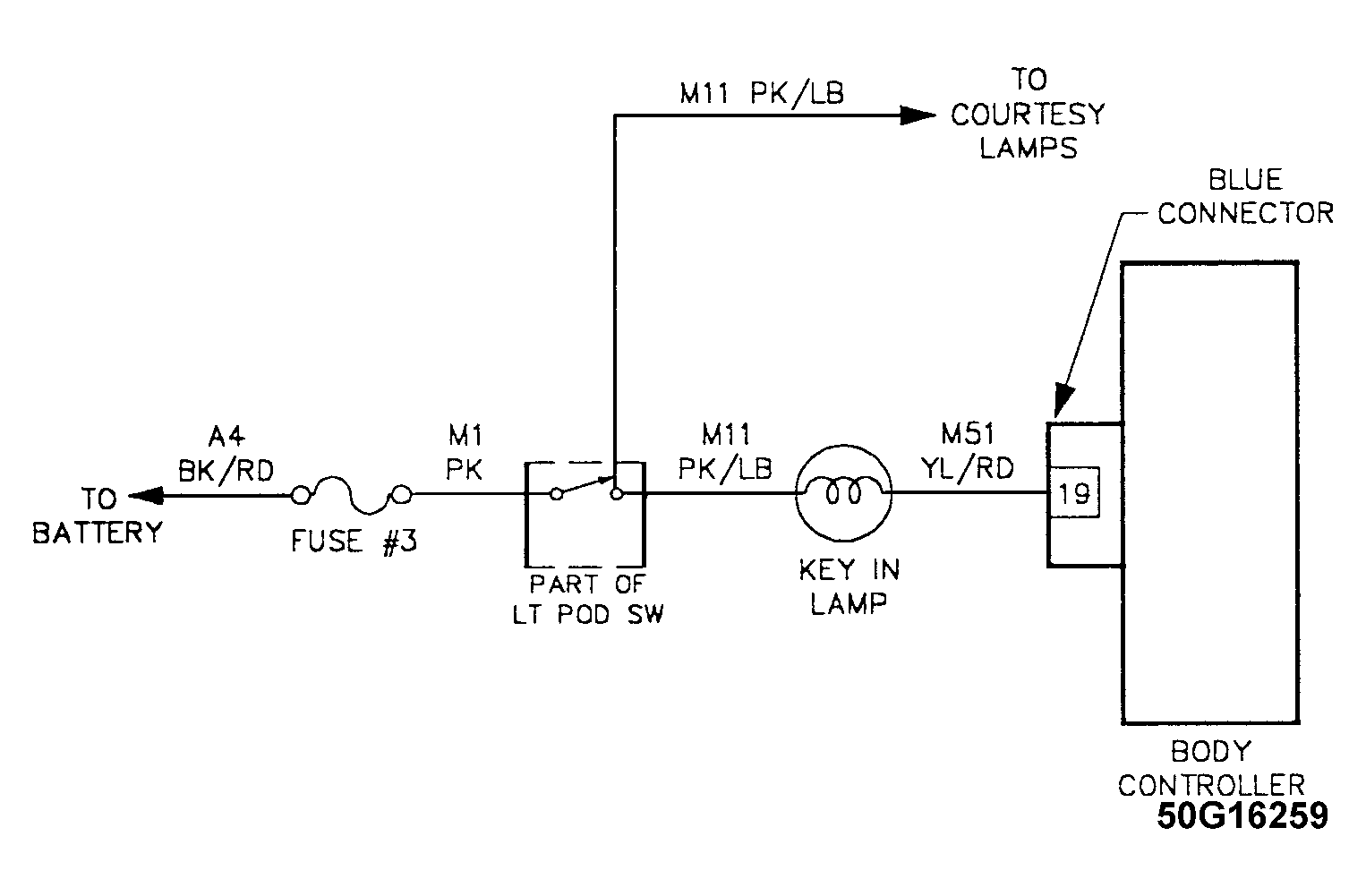

Fig 1: Test 36A Schematic - Checking Key In Lamp Circuit

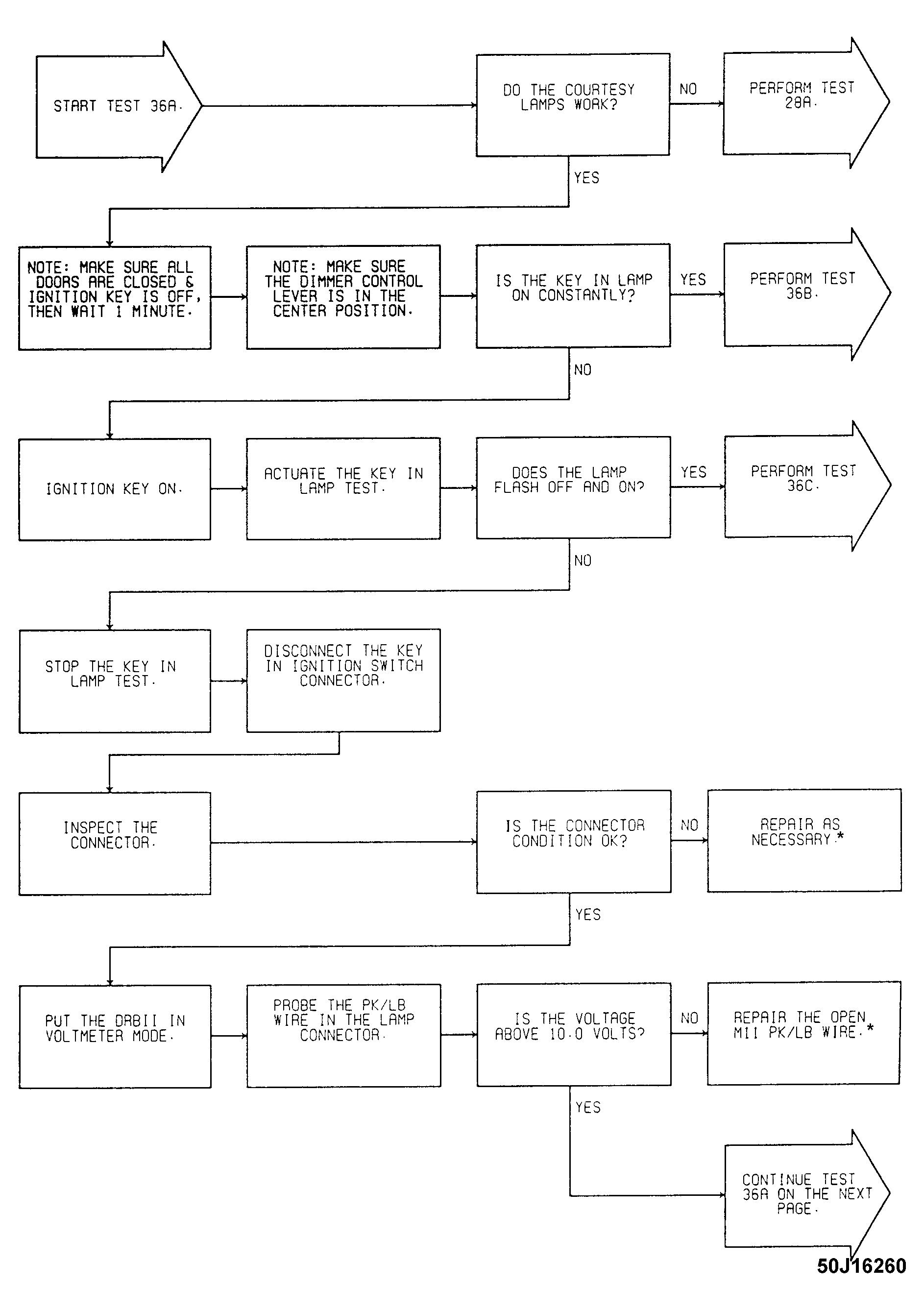

Fig 2: Test 36A Flow Chart (1 of 2) - Checking Key In Lamp Circuit

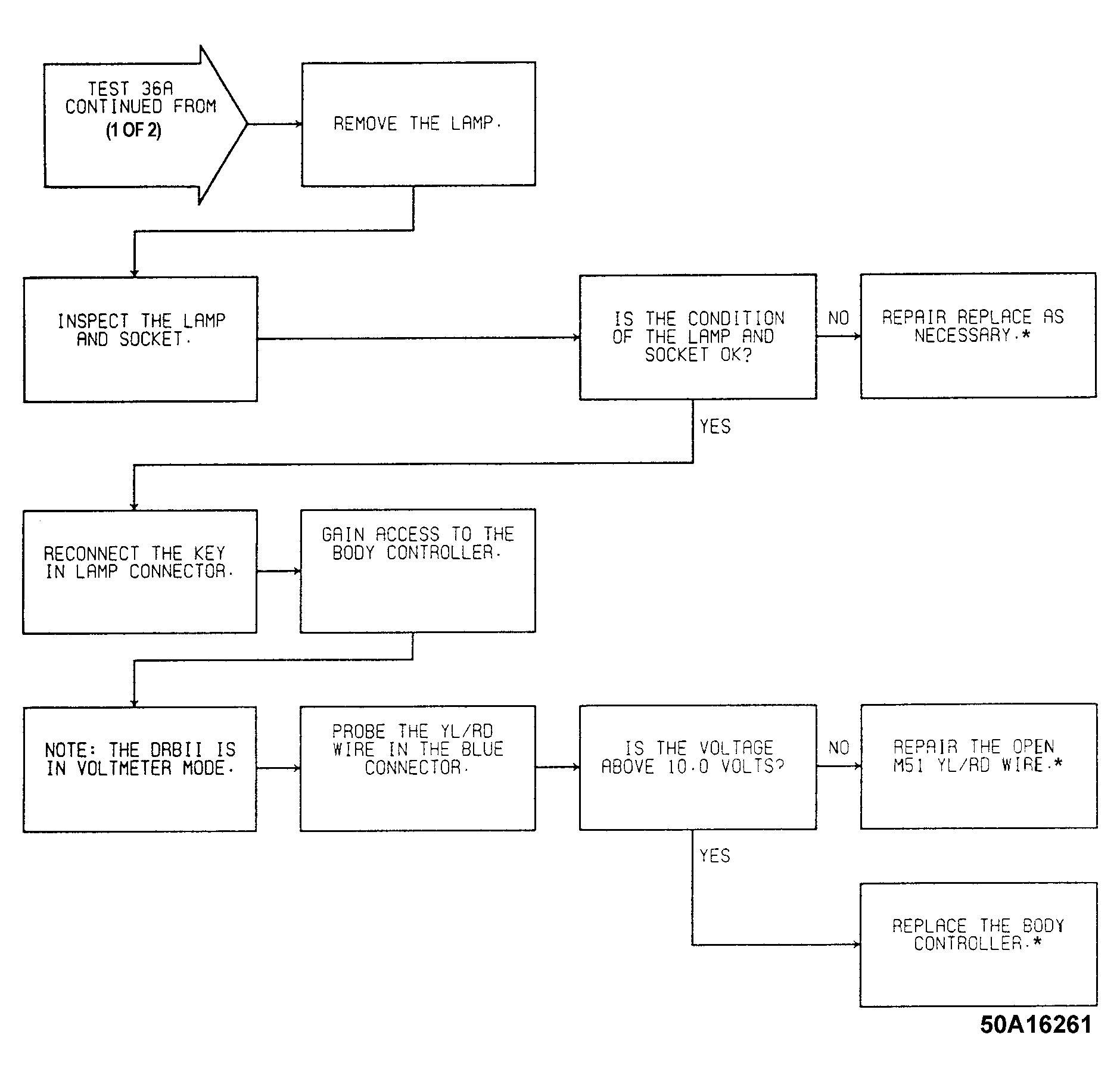

Fig 3: Test 36A Flow Chart (2 of 2) - Checking Key In Lamp Circuit
