Test 29A - Checking Body Controller & Wiring For Shorts To

GROUND

Fig 1: Test 29A Schematic - Checking Body Controller & Wiring For Shorts to Ground
G91I14637

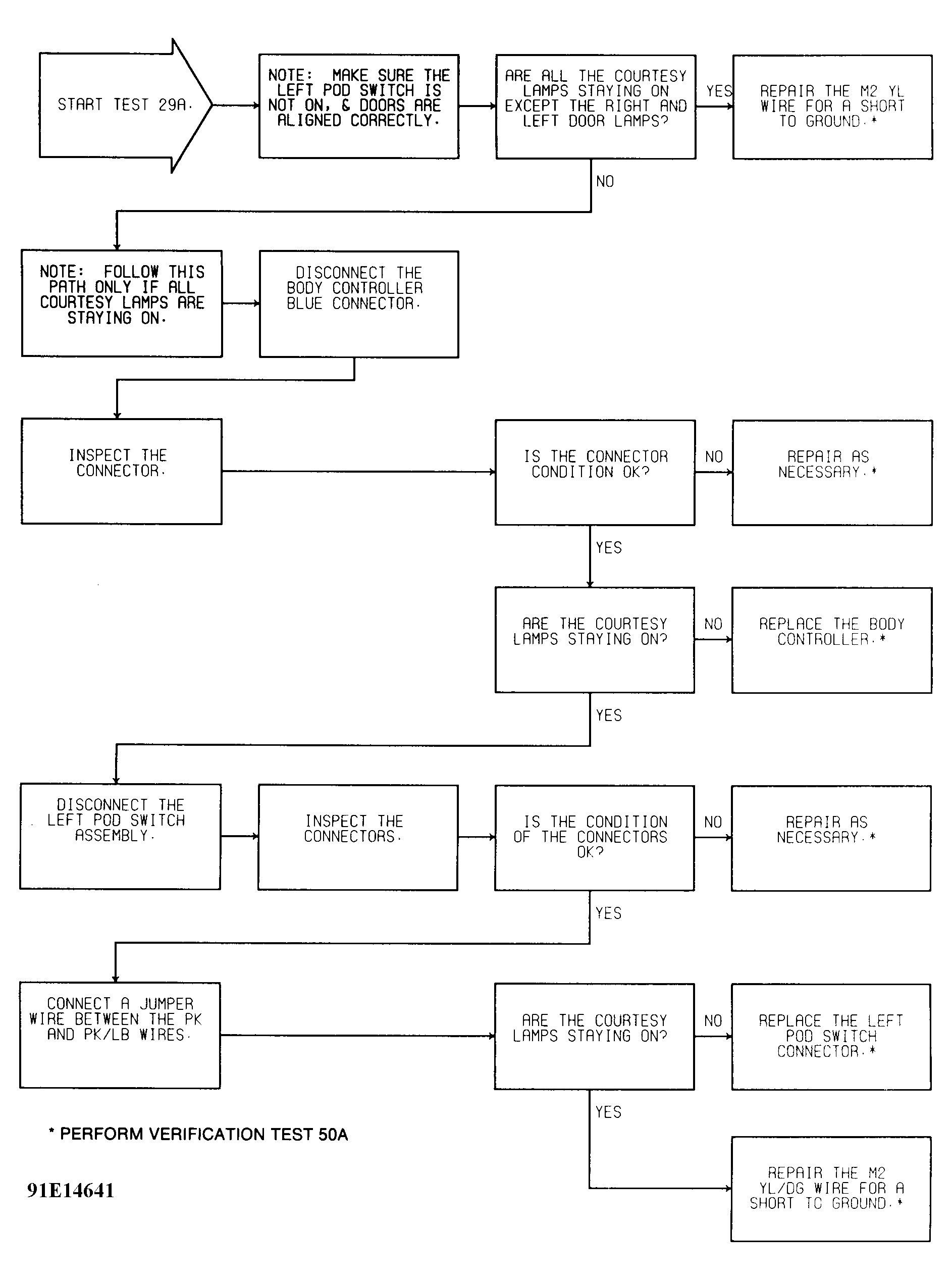

Fig 2: Test 29A Flow Chart - Checking Body Controller & Wiring For Shorts to Ground
G91E14641
