Test 70A - Testing Mechanical Instrument Cluster For No

RESPONSE

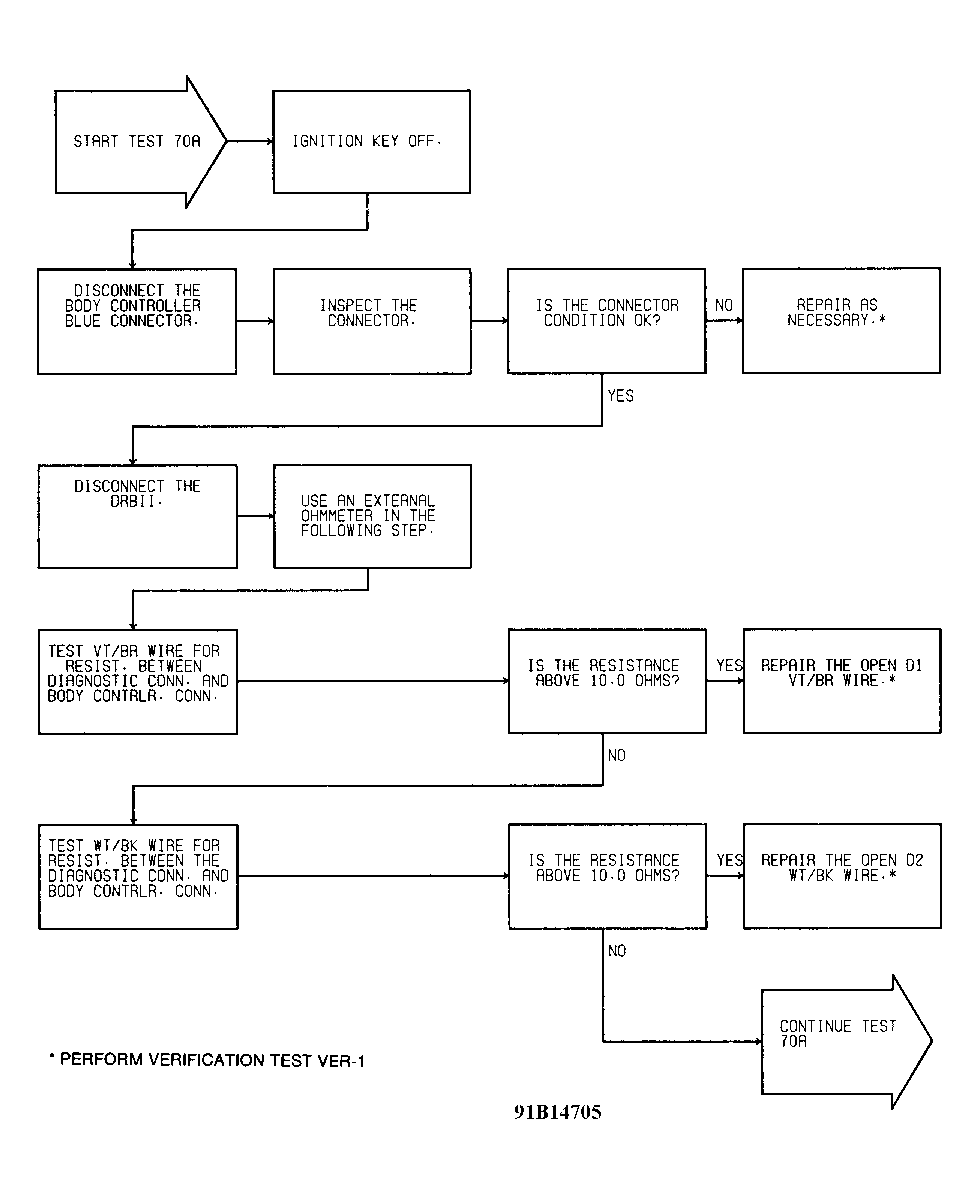

Fig 1: Test 70A (1 of 3) - Testing Body Controller No Response
G91B14705

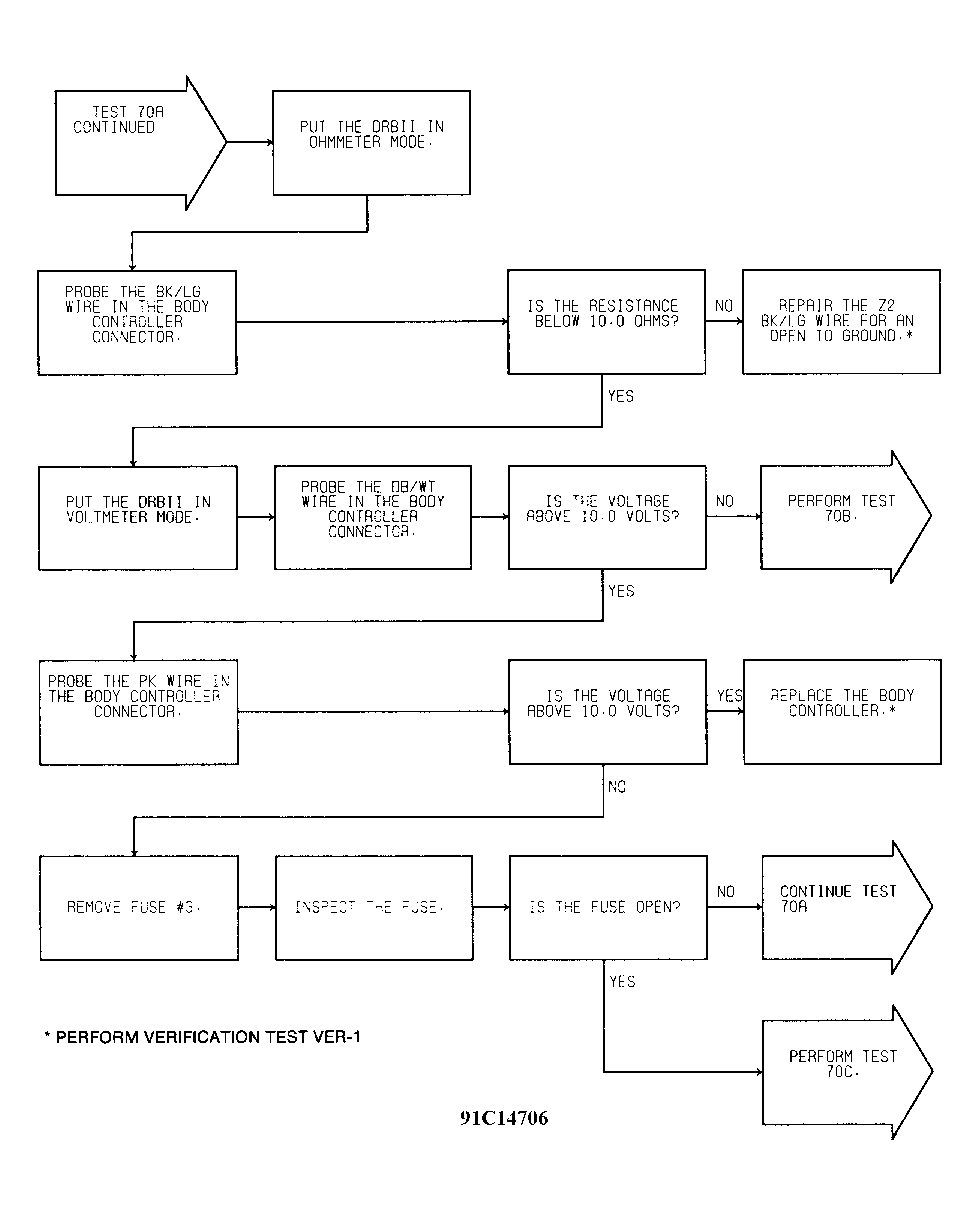

Fig 2: Test 70A (2 of 3) - Testing Body Controller No Response
G91C14706

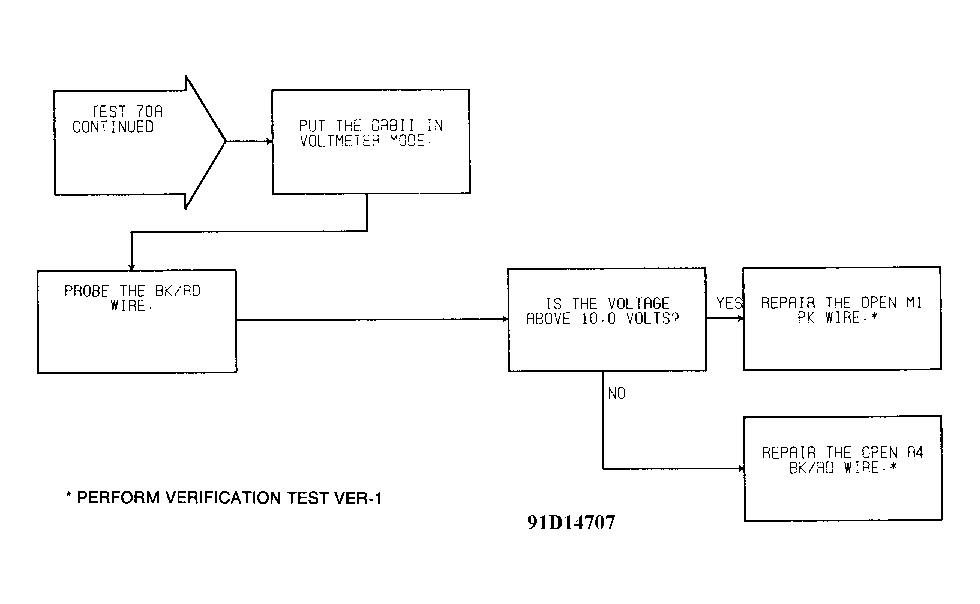

Fig 3: Test 70A (3 of 3) - Testing Body Controller No Response
G91D14707
