Power Window & Switch Function Connector
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Window & Switch Function Connector

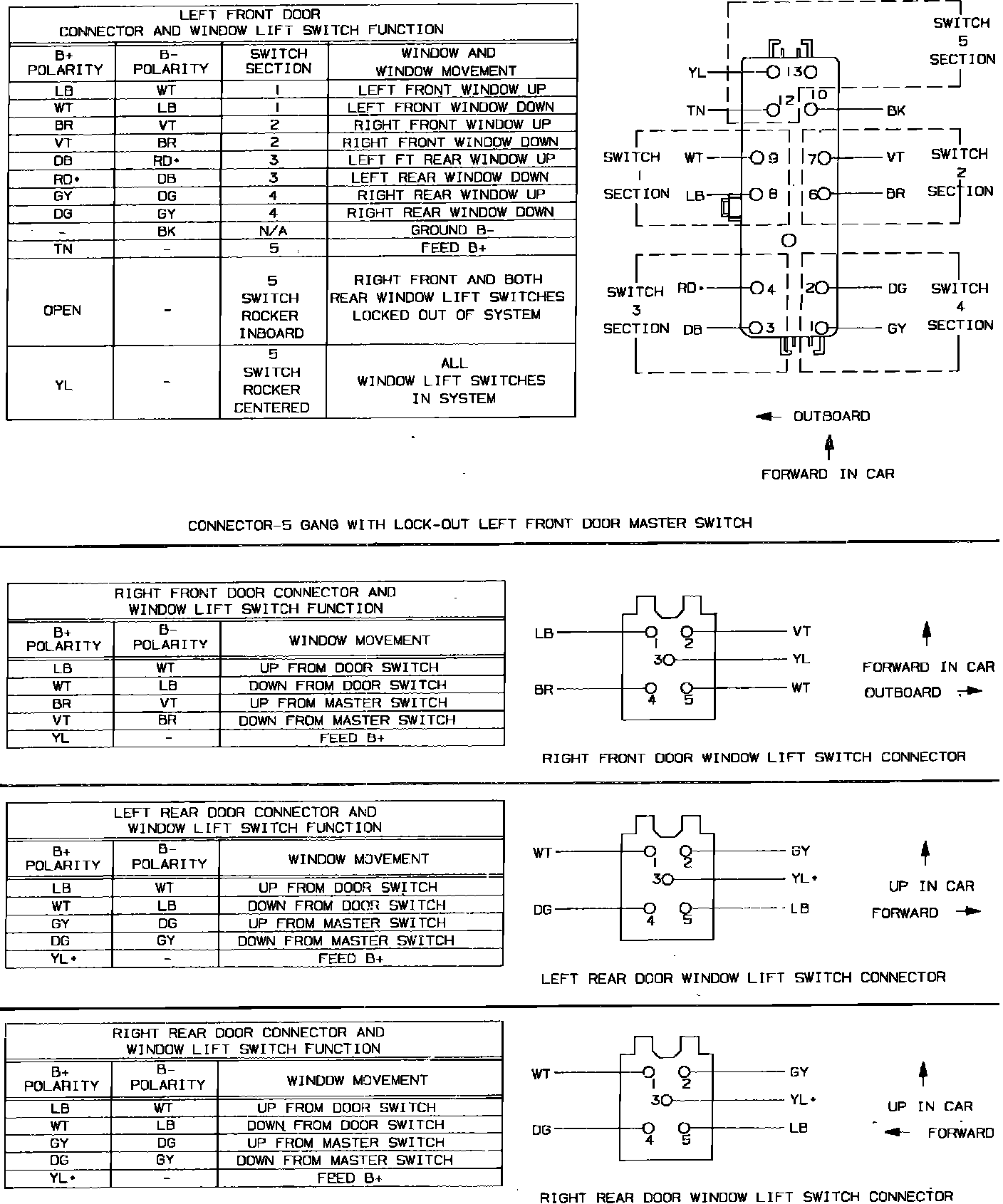

Fig. 18 Power Window & Switch Function Connector:
