Oxygen Sensor: Locations

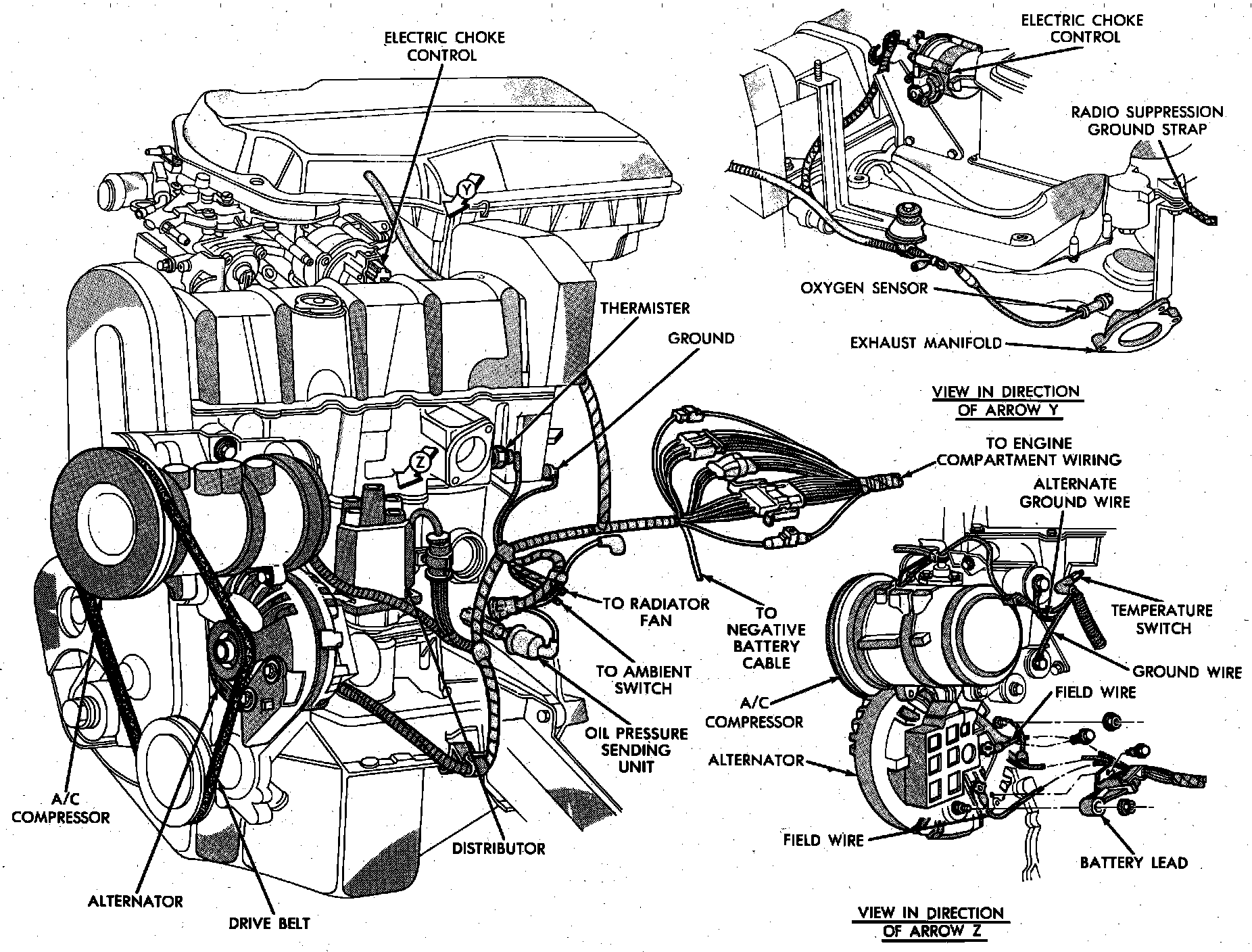

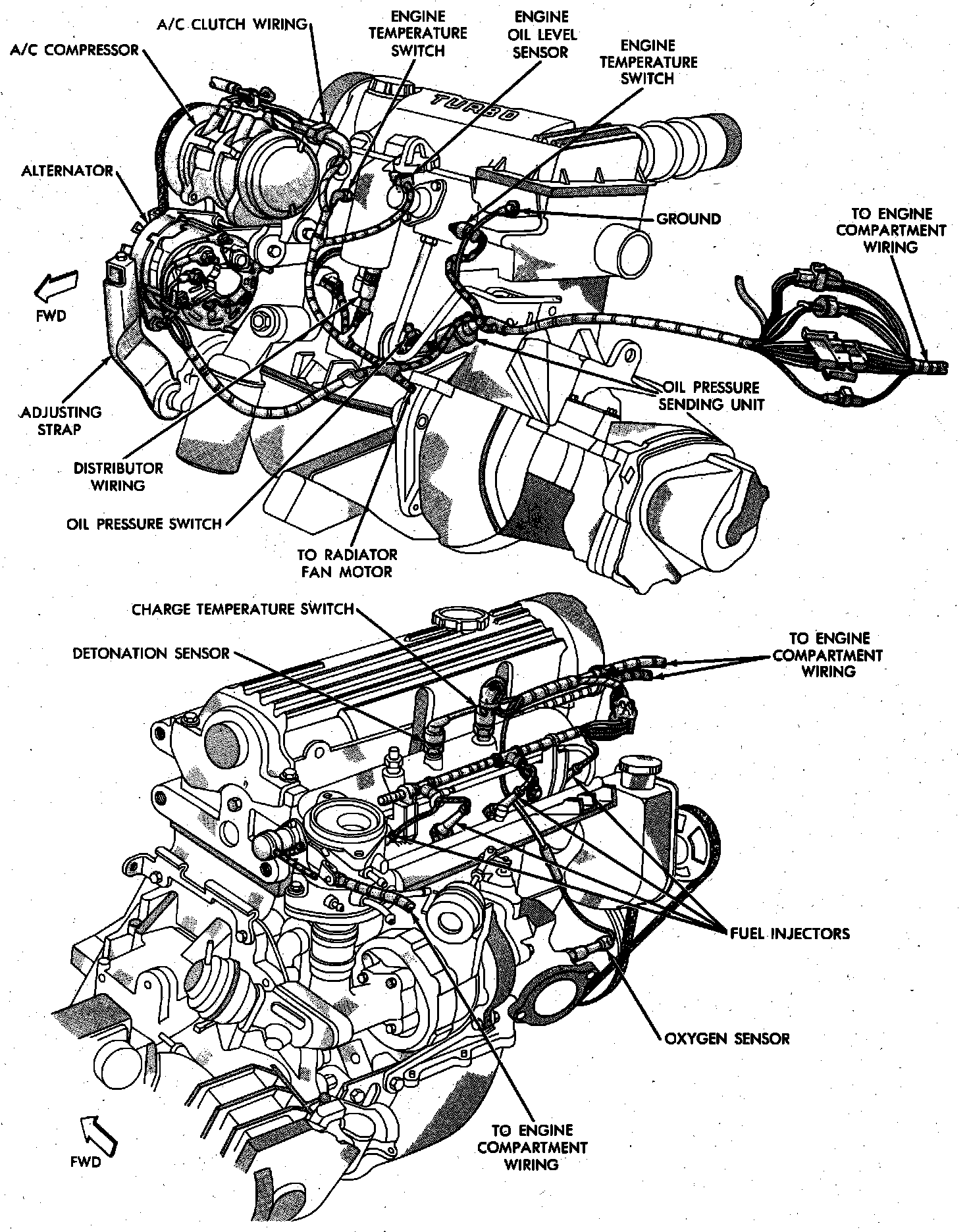

Engine Electrical Components.:

Bottom Rear Of Engine, In Exhaust Manifold

Applicable to: 1985 2.2L Turbo

Engine Electrical Components.:

Bottom Rear Of Engine, In Exhaust Manifold

Applicable to: 1984-85 2.2L Except Turbo

Engine Electrical Components.:

Bottom Rear Of Engine, In Exhaust Manifold

Applicable to: 1981-83 2.2L

Bottom Rear Of Engine, In Exhaust Manifold

Applicable to: 1983-85 2.2L
