Diagnostic Codes For 1.0L

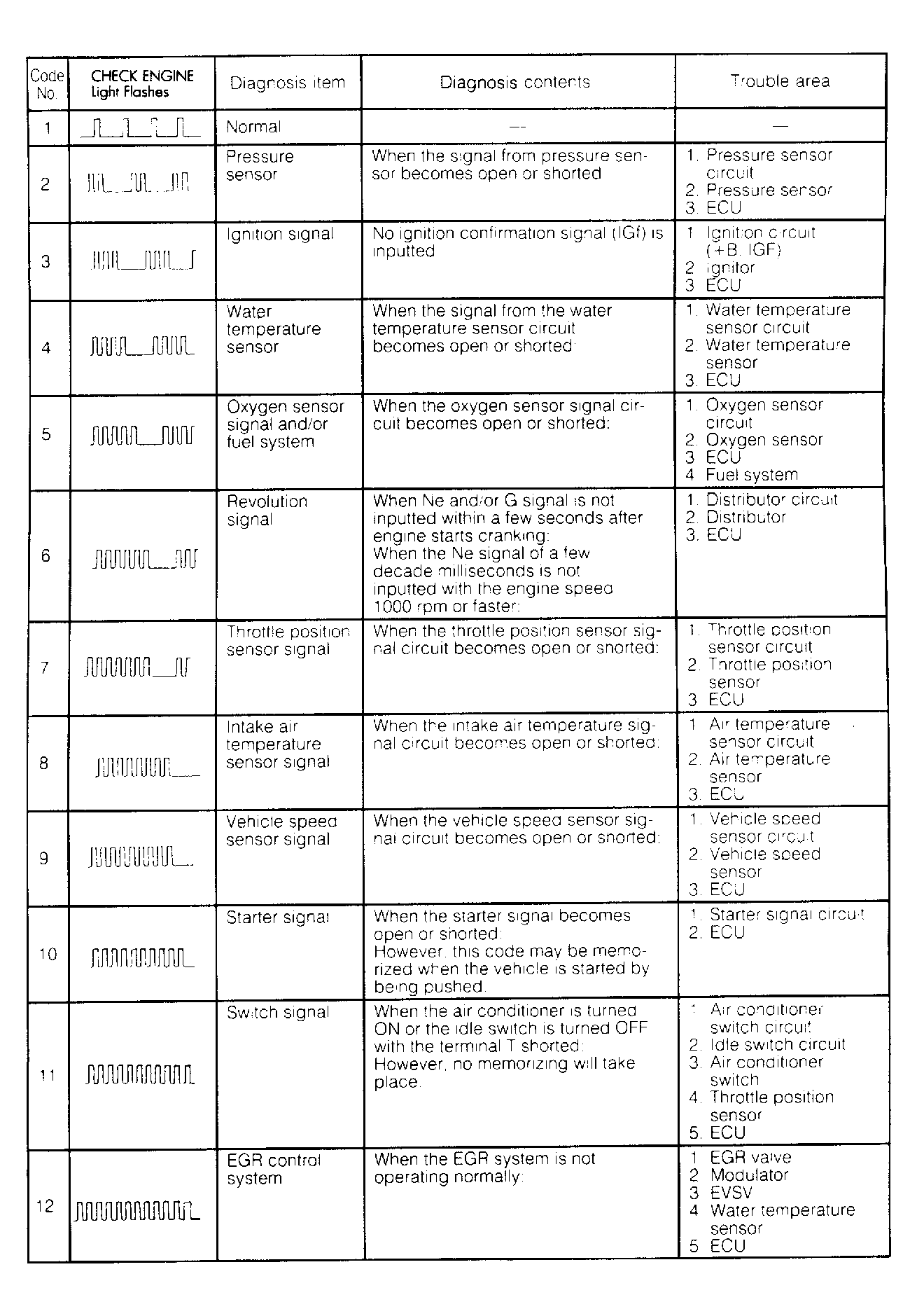

Fig 1: Diagnostic Code ID Charade 1.0L

G90J16559

Courtesy of DAIHATSU MOTOR CO., LTD.
