Cruise Control Module: Testing and Inspection

Fig. 6 ECU Harness Connector Terminals:

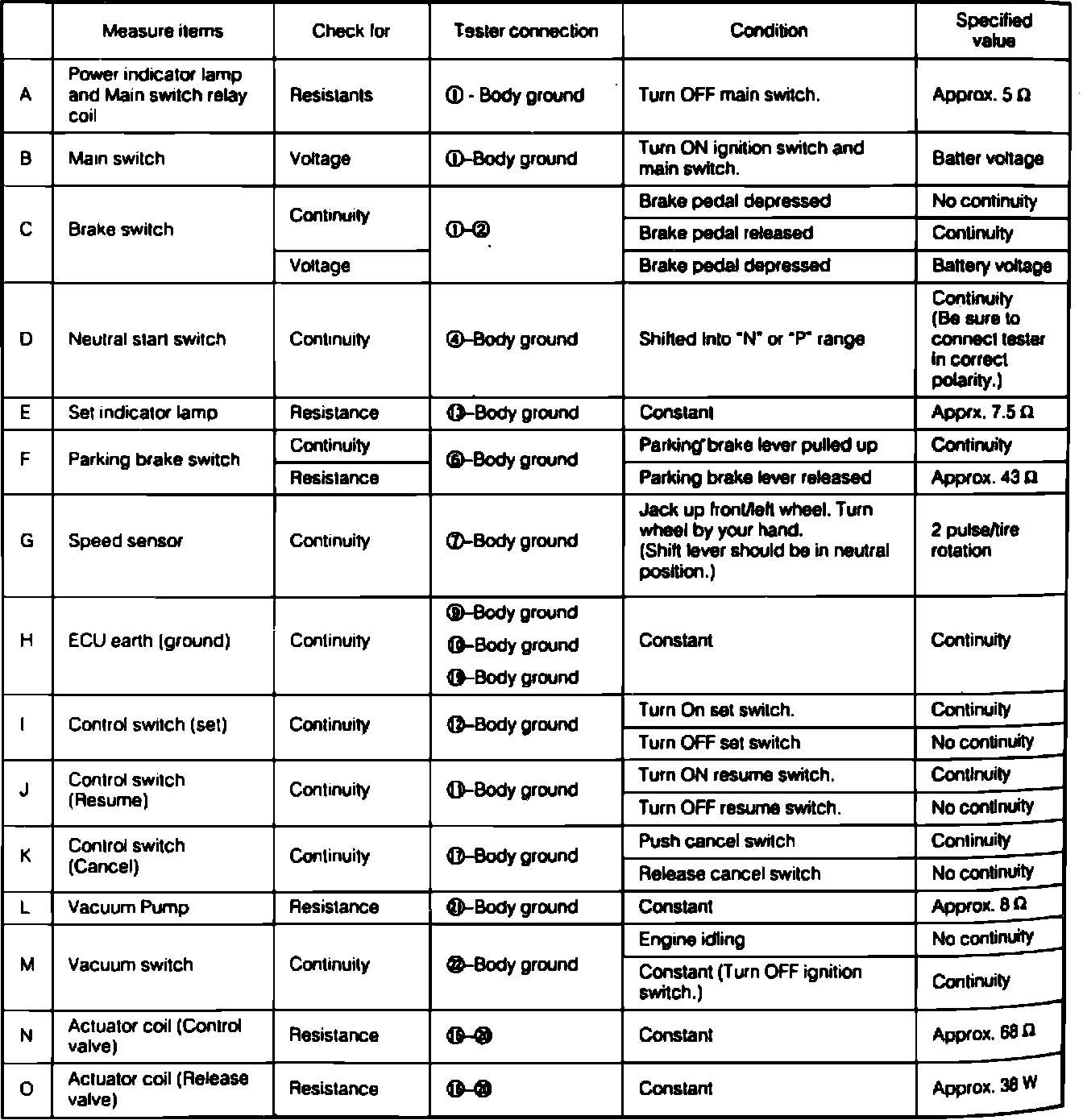

Fig. 7 ECU Diagnosis:

1. Disconnect ECU connector. Using a suitable volt/ohmmeter measure voltage at ECU wire harness side, Fig. 6.
2. Refer to Fig. 7, for procedure. Ignition should be turned off unless otherwise noted.
