Main Relay (1.3L/4-79)

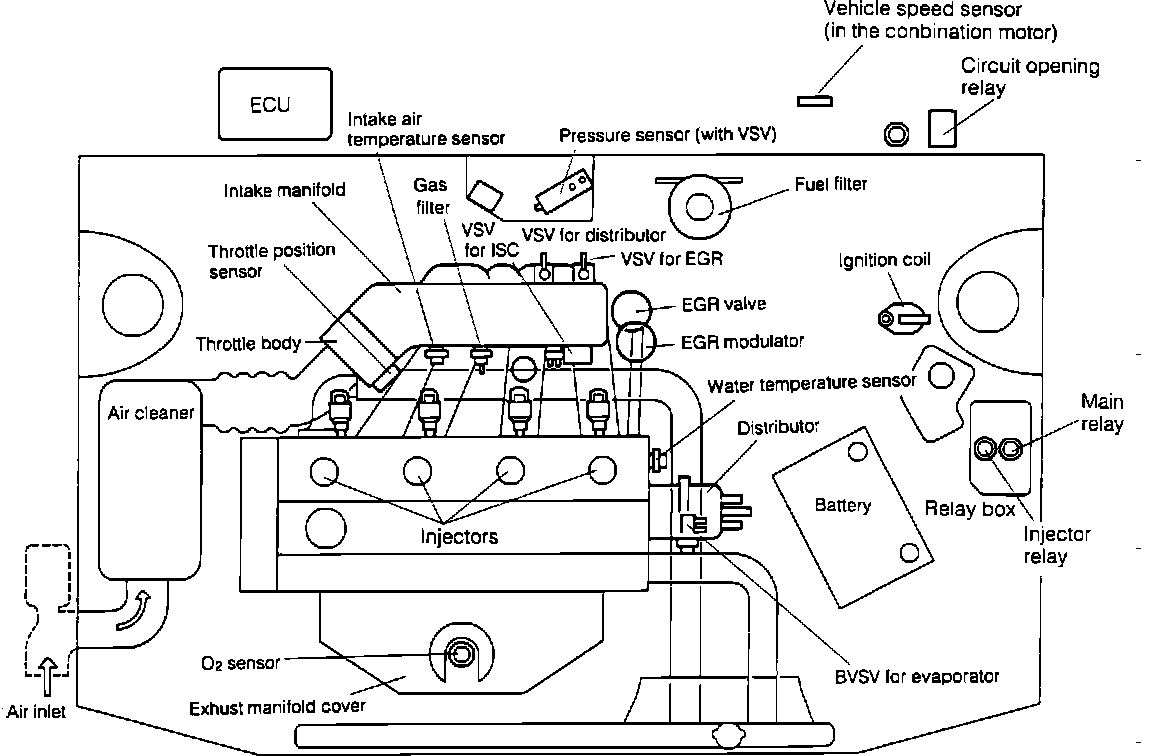

EFI Control System Component Location.:




Front LH Side Of Engine Compartment

Applicable to: 1.3L/4-79
