Power Door Lock Control Module
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

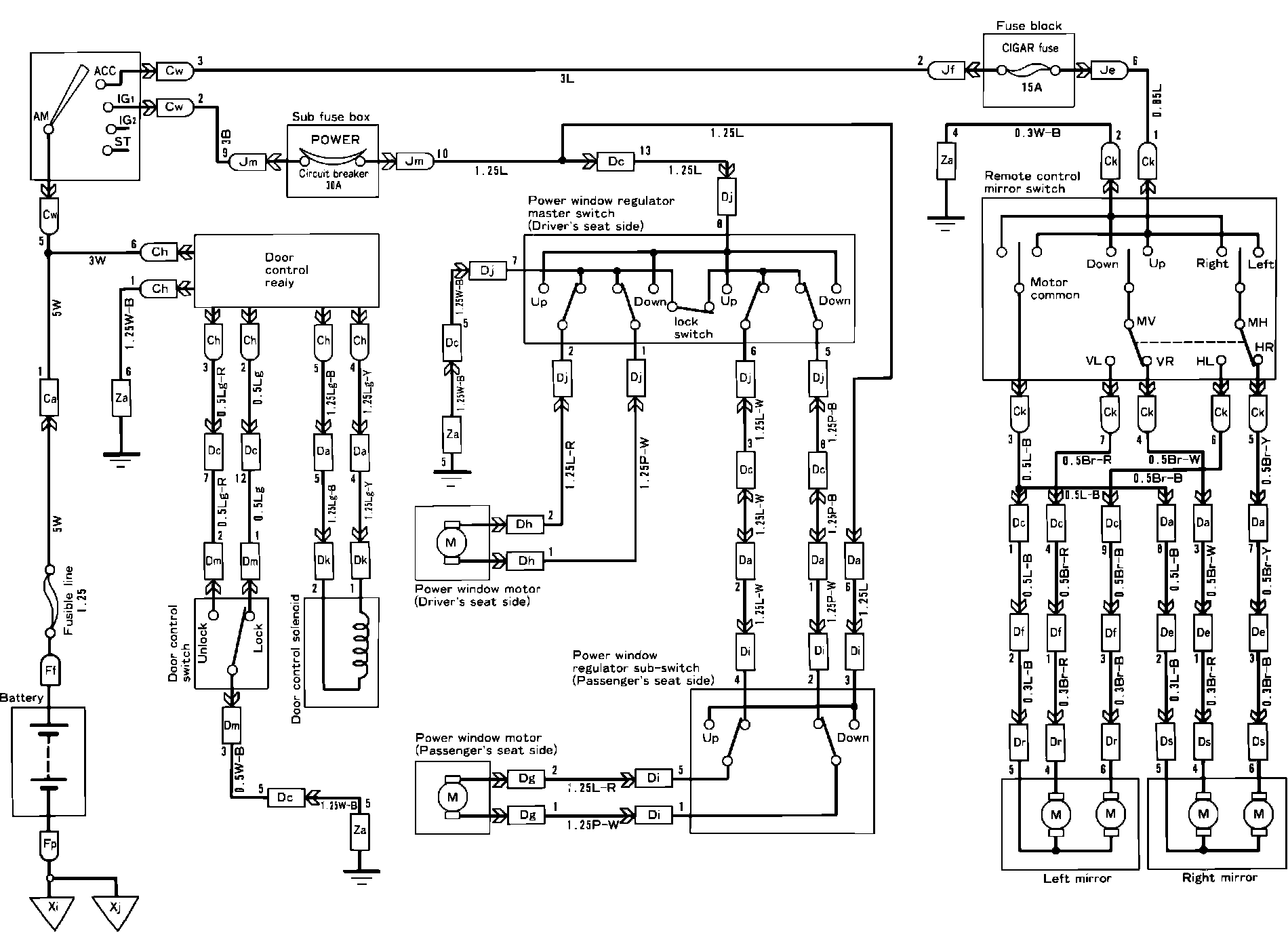

Power Door Lock Control Module
Power Door Locks, Windows, And Mirror:
