Control Module/Receiver Connector

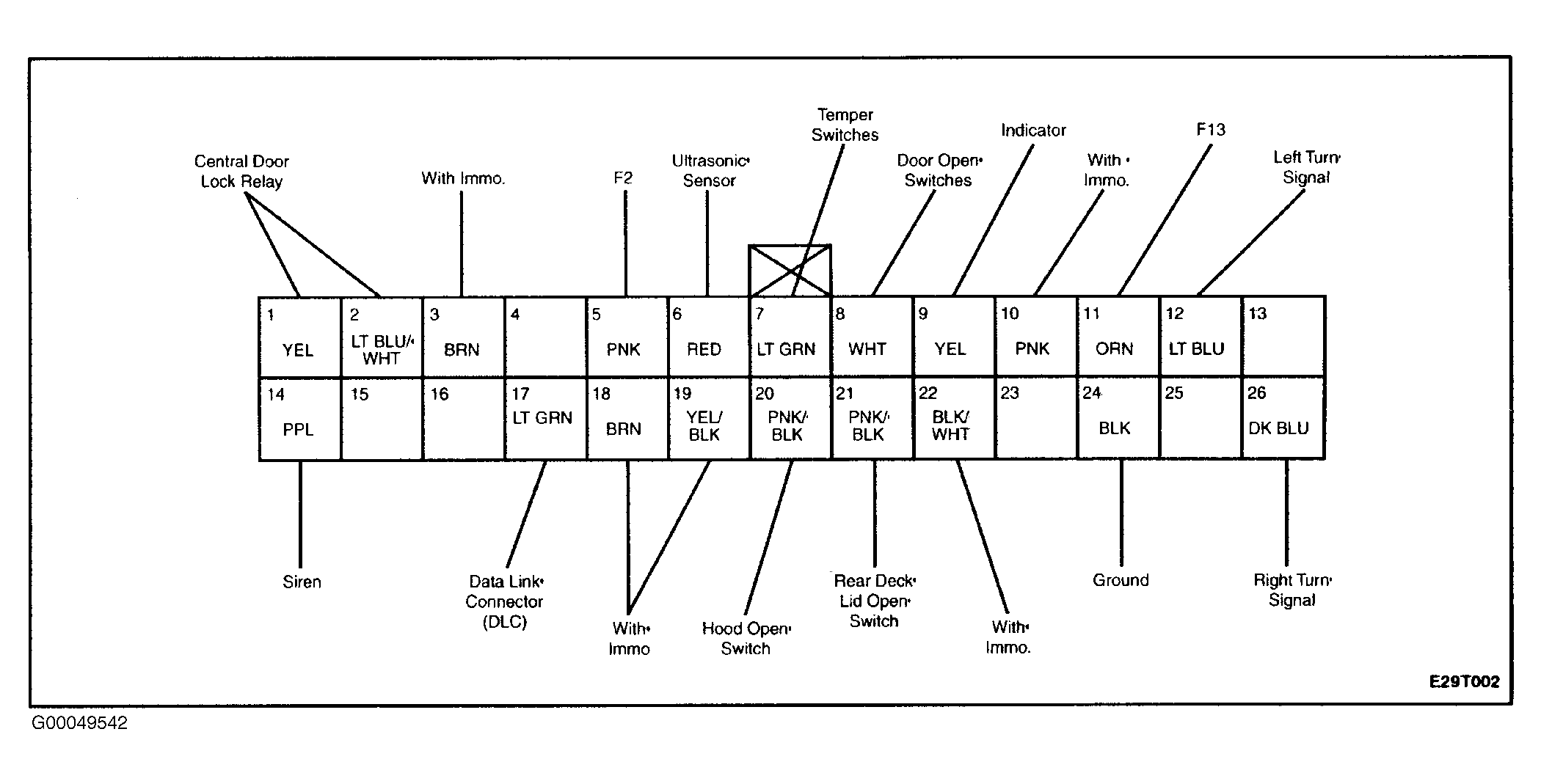

Fig 1: Control Module/Receiver Connector
Courtesy of DAEWOO MOTOR AMERICA, INC.
