DTC P0533: A/C Pressure Sensor High: Notes

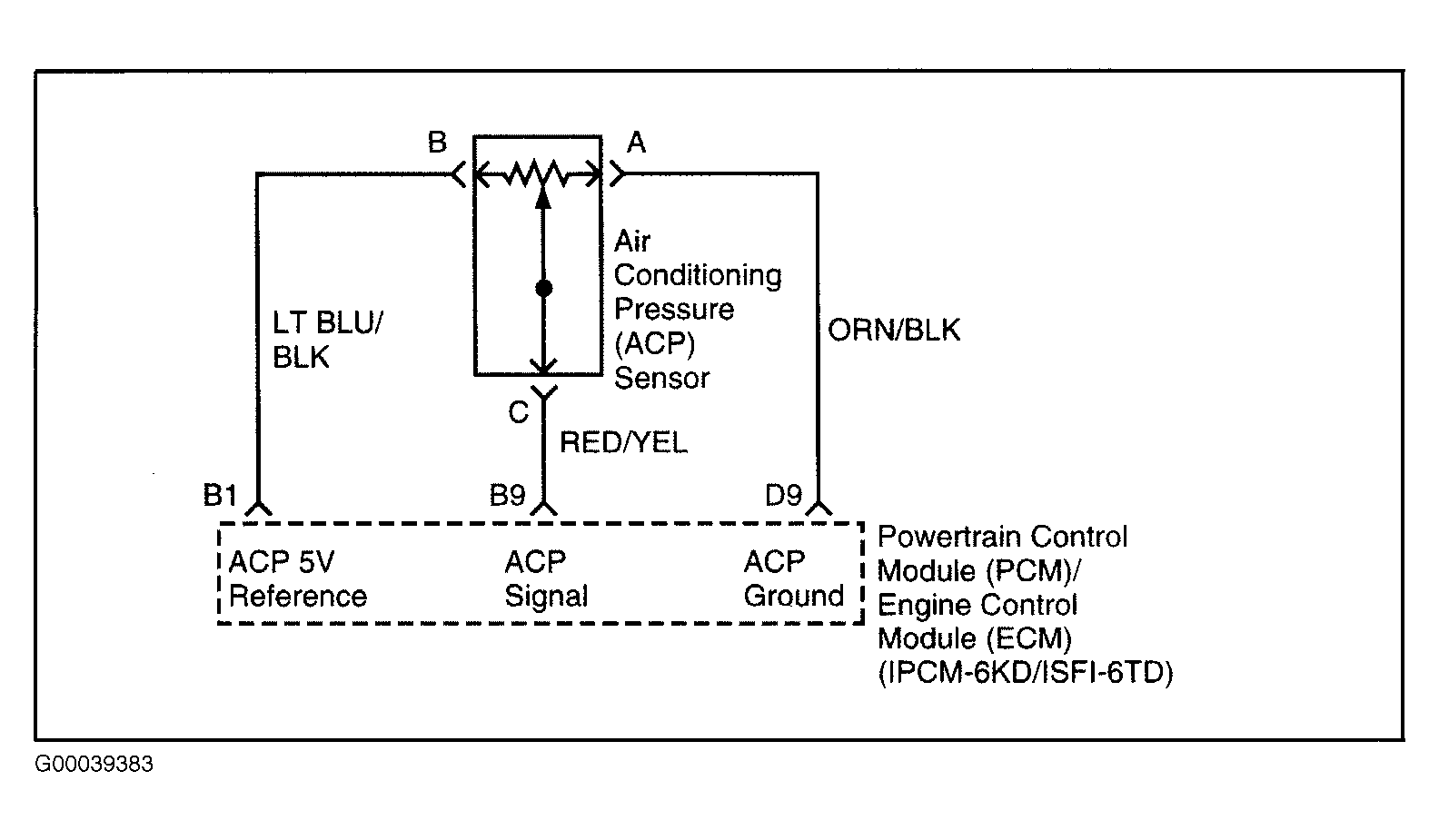

Fig 1: A/C Pressure Sensor Circuit Diagram
G00039383Courtesy of DAEWOO
