DTC Definitions

NOTE: Do not use Diagnostic Trouble Code Definitions tables to try and correct an intermittent fault. The fault must be present to locate problem. Incorrect use of DTC tables may result in unnecessary replacement of parts.

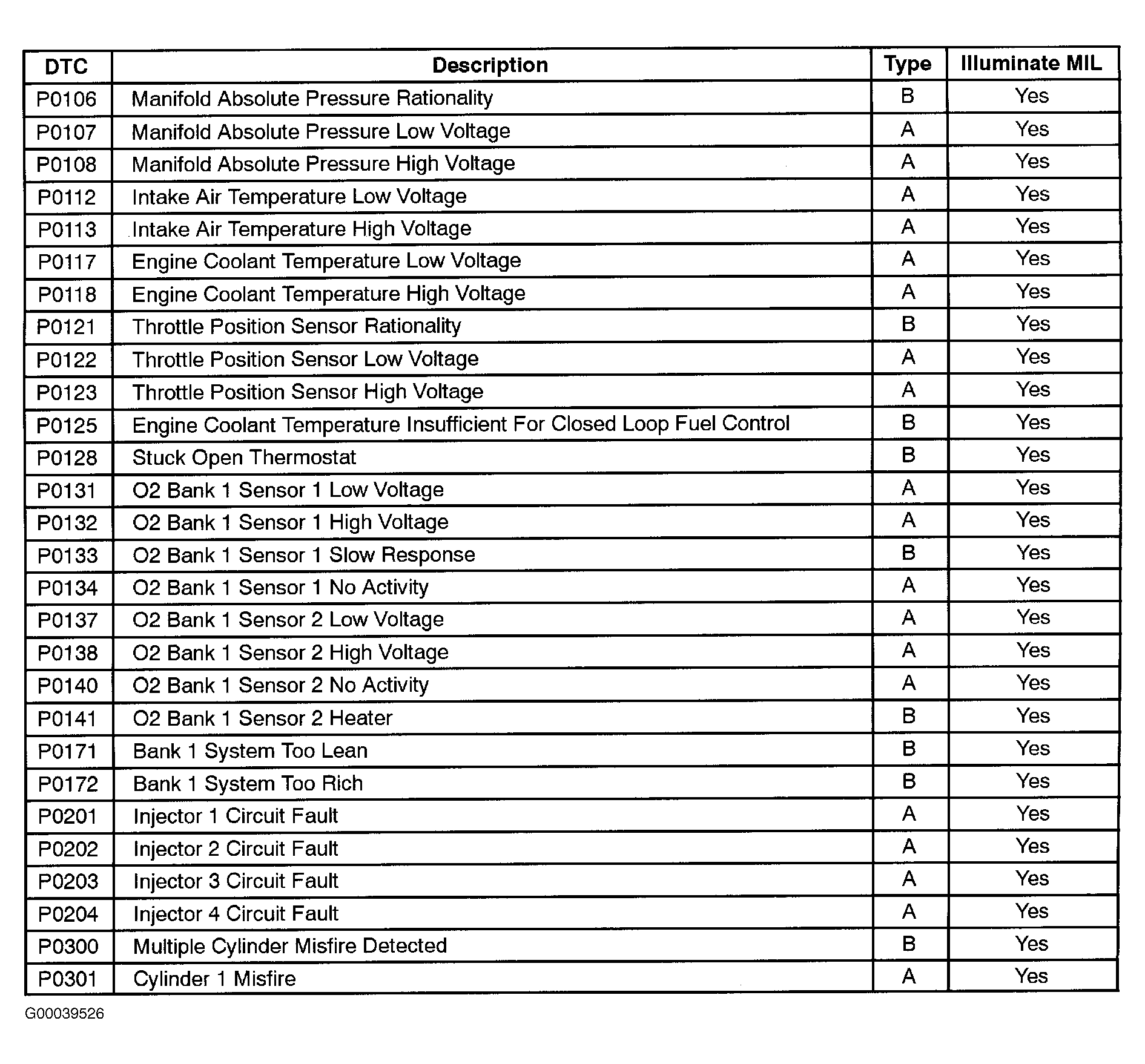

Fig 1: Diagnostic Trouble Code Definitions (1 Of 3)

Courtesy of DAEWOO

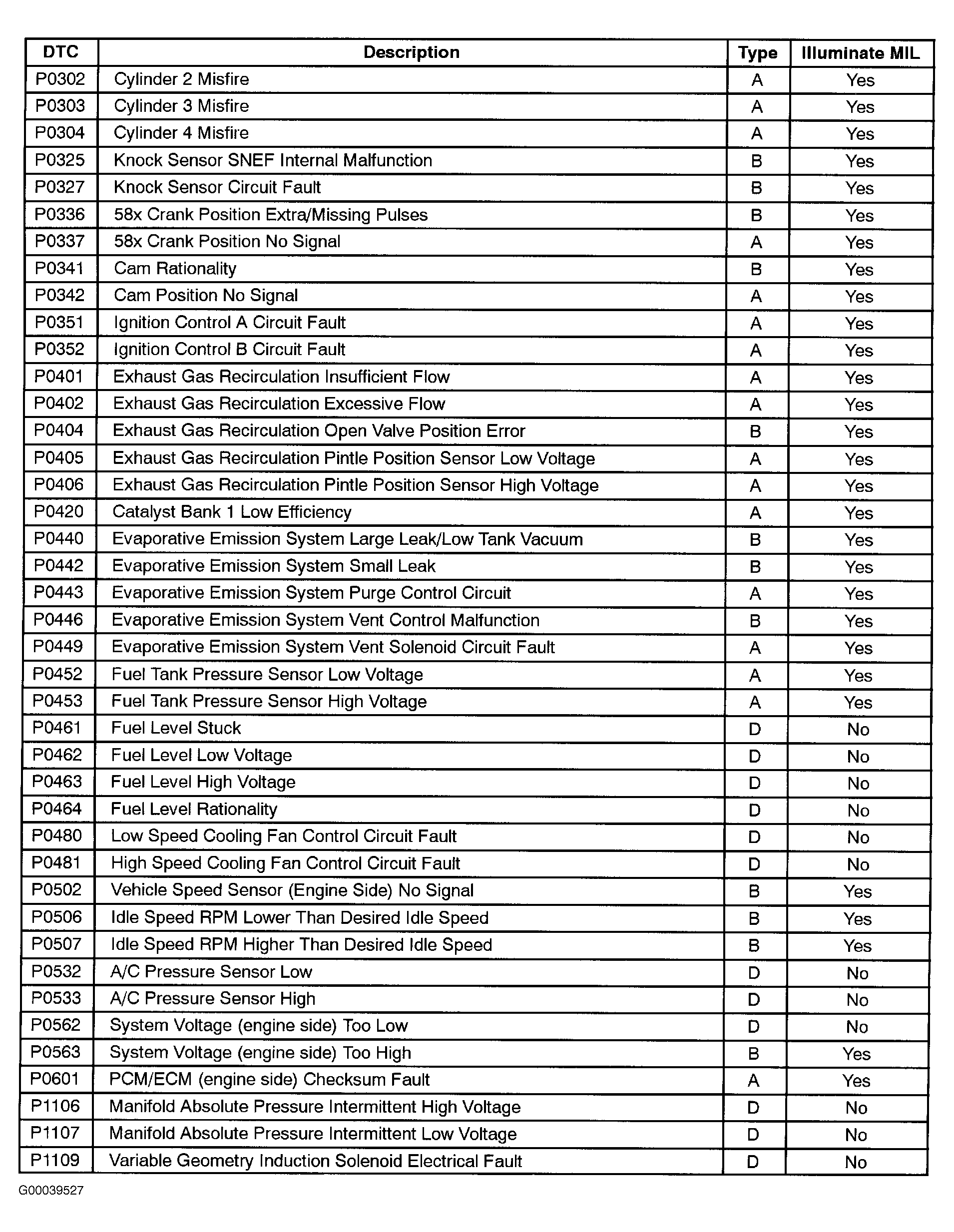

Fig 2: Diagnostic Trouble Code Definitions (2 Of 3)

Courtesy of DAEWOO

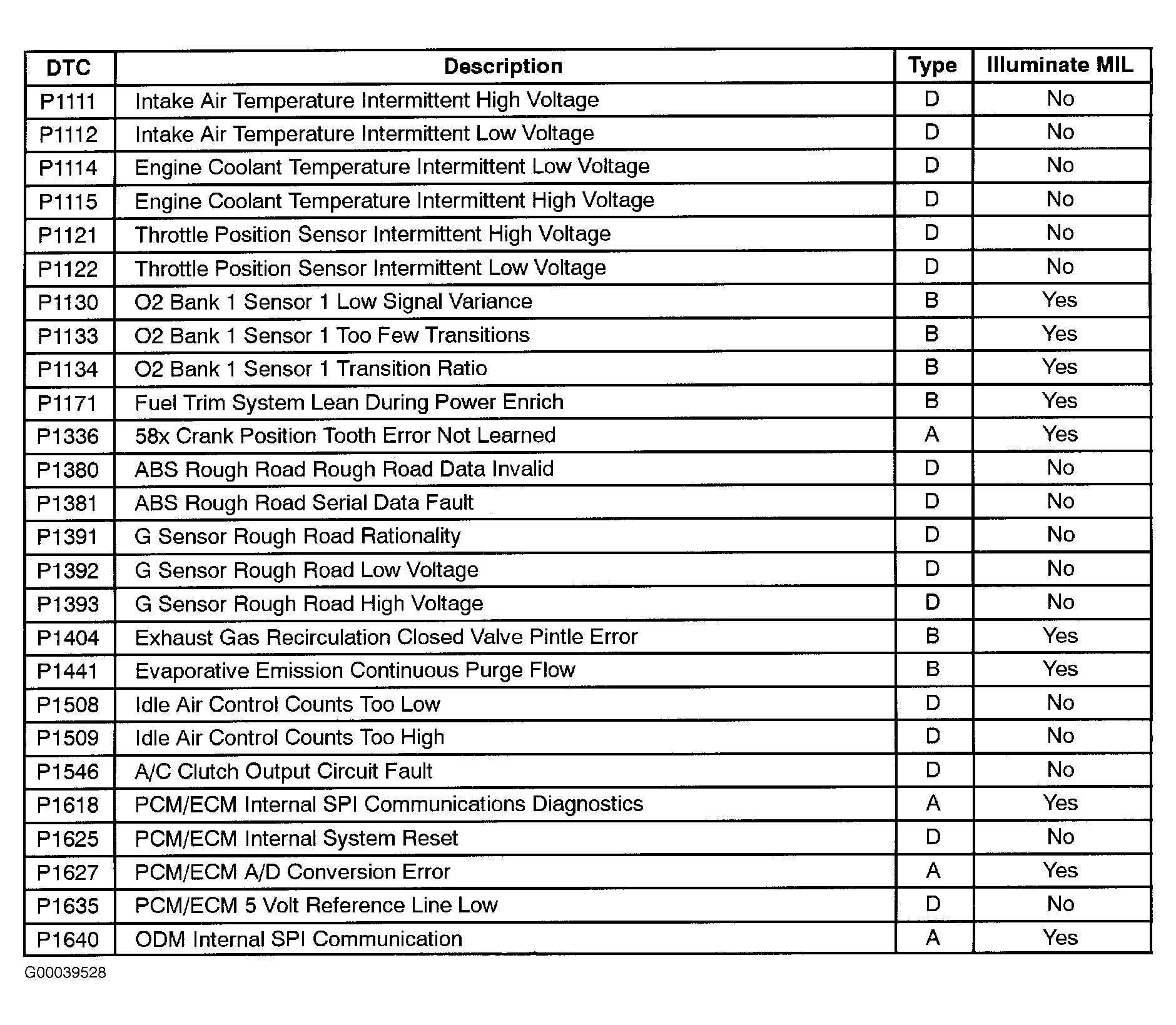

Fig 3: Diagnostic Trouble Code Definitions (3 Of 3)

Courtesy of DAEWOO
