Global Telematics Box Module: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
- Remove the Integrated Center Stack (ICS) from the instrument panel cover. Refer to
MODULE, INTEGRATED CENTER STACK (ICSM), REMOVAL AND INSTALLATION .

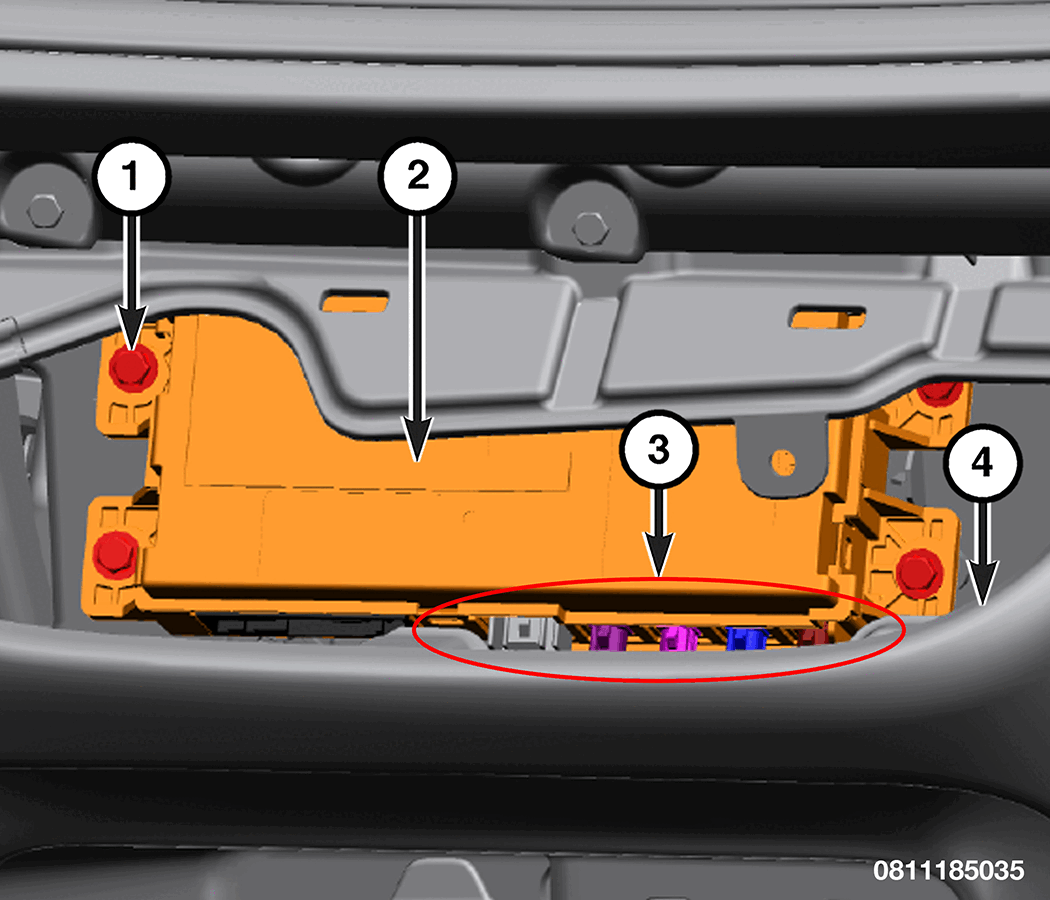

1 - Screws 2 - TBM2 3 - Wire Harness Connectors 4 - Mounting Bracket - Disconnect the wire harness connectors from the Global Telematics Box Module (TBM2).
- Remove the screws from the TBM2 mounting bracket that secure the TBM2 to the bracket.

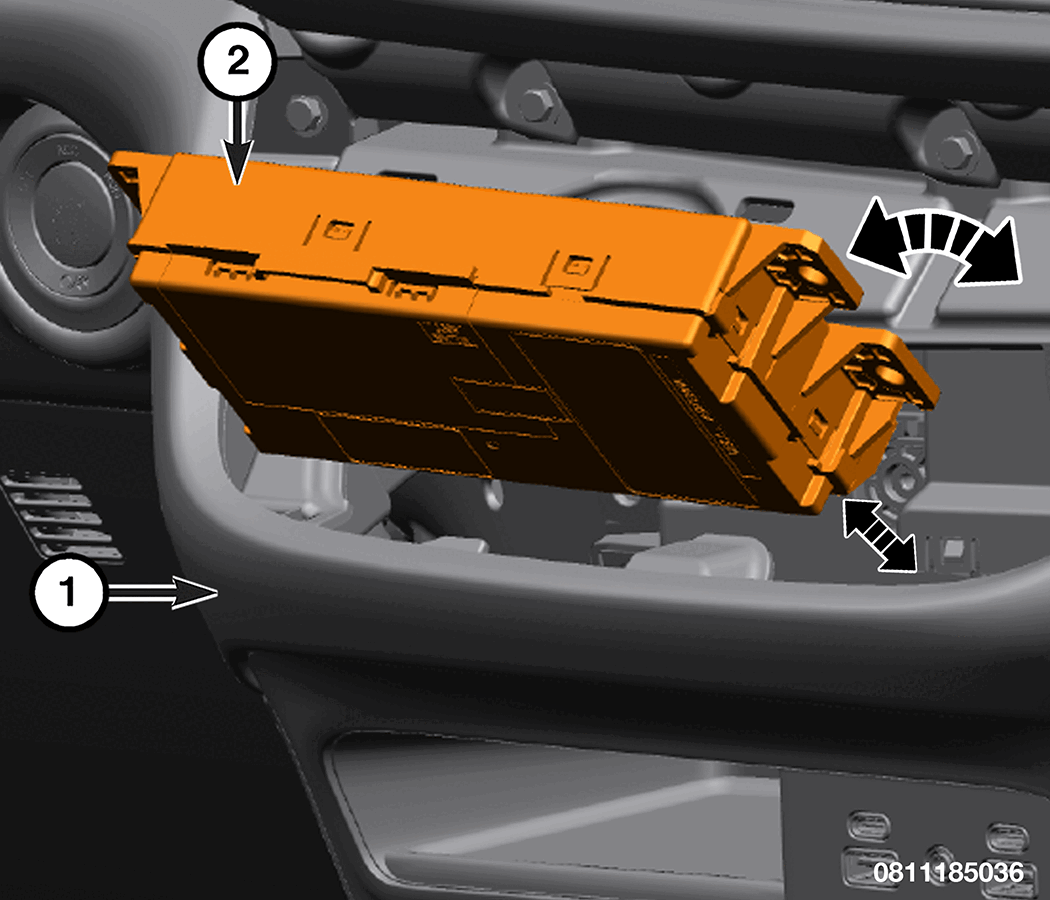

1 - Center Trim 2 - TBM2 - Remove the TBM2 from the vehicle.
