Anti-Lock Brake System (Abs) Module: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Power down the 12-volt system. Refer to the appropriate information. Wait two minutes for the system capacitor to discharge before further service.
    GC0177720Courtesy of CHRYSLER GROUP, LLC
    1 - ABS Electrical Connector
    2 - Solvent Fill Tube Mounting Bolt
    3 - HCU Mounting Bolts
  2. Remove the washer solvent fill tube mounting bolt, and reposition the washer solvent fill tube.

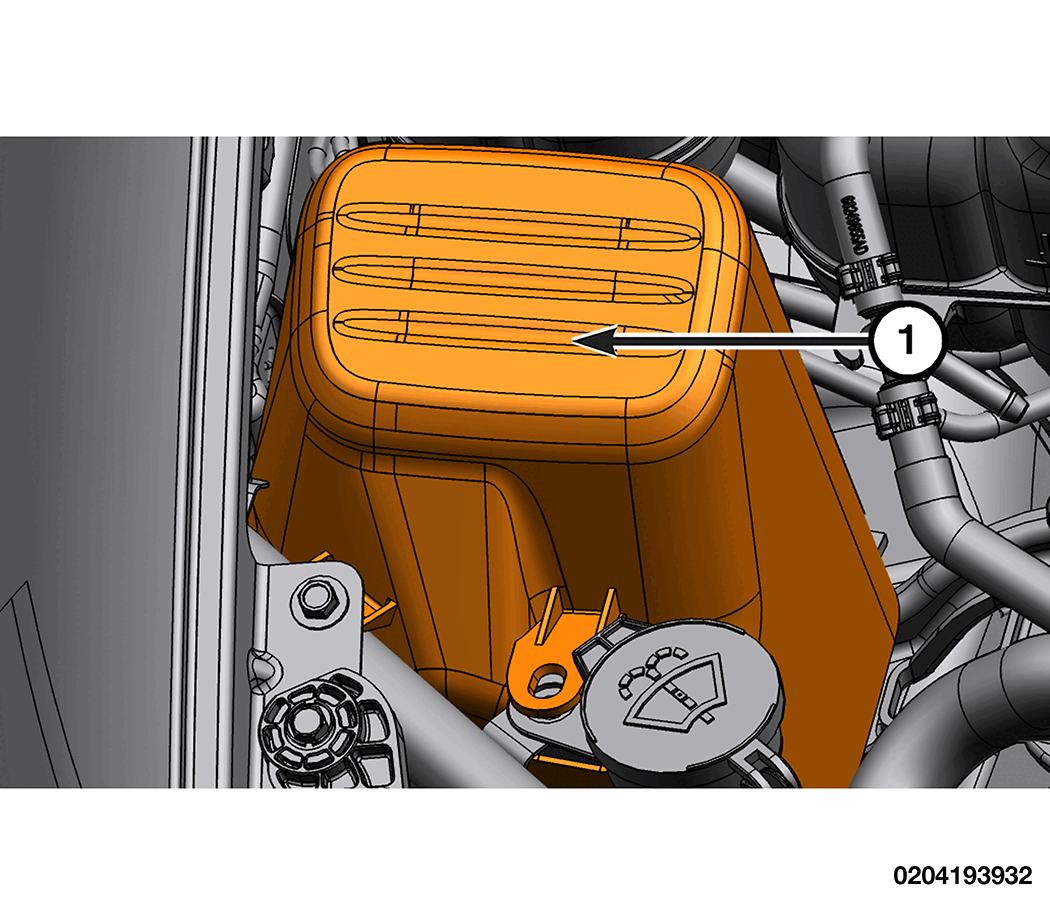

    GC0207304Courtesy of CHRYSLER GROUP, LLC
    1 - HCU Cover
  3. If equipped, remove the Hydraulic Control Unit (HCU) cover.
  4. Remove the right front headlamp. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .
    GC0177720Courtesy of CHRYSLER GROUP, LLC
    1 - ABS Electrical Connector
    2 - Solvent Fill Tube Mounting Bolt
    3 - HCU Mounting Bolts
  5. Disconnect the Anti-lock Brake System (ABS) electrical connector.
  6. Remove the four Anti-lock Brake System (ABS) module to hydraulic control unit (HCU) mounting bolts.
  7. Carefully separate the ABS module from the HCU.
  8. Remove the ABS module from the vehicle.
