Shield, Heat: Installation

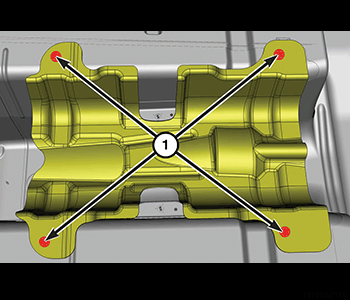

GC0170285Courtesy of CHRYSLER GROUP, LLC
  1. Position the heat shields.
  2. Install and securely tighten the fasteners (1).
  3. Install the resonator/muffler assembly. Refer to MUFFLER, EXHAUST, INSTALLATION .
