Cluster Lens

WARNING: This page is about a different car, the 2015 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

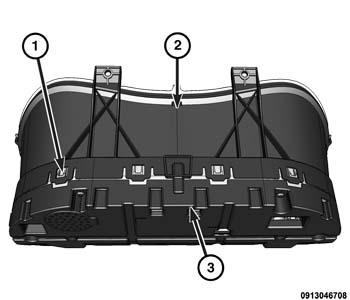

Fig 1: IPC, Lens Unit & Clips

Courtesy of CHRYSLER GROUP, LLC

Position the cluster lens and mask unit (2) over the face of the Instrument Panel Cluster (IPC) (3).
Working around the perimeter of the IPC, apply even pressure to the lens until each of the retaining clips (1) are fully engaged to the housing.
Install the IPC. Refer to INSTALLATION .

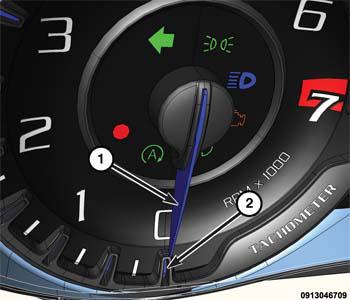

Fig 2: Gauge Needle & Zero Position
Courtesy of CHRYSLER GROUP, LLC
Using the procedure within the diagnostic scan tool, IPC Service Mode , return the gauge needles (1) to the zero position (2).
