E-Shifter Installation: Notes

WARNING: This page is about a different car, the 2015 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

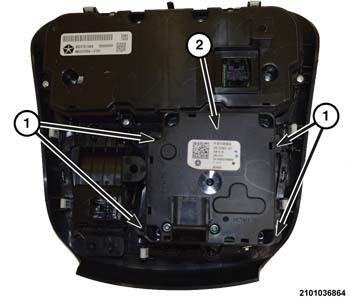

Fig 1: E-Shifter & Screws
GC0162593Courtesy of CHRYSLER GROUP, LLC
  1. Install the E-shifter (2) into the lower center stack.
  2. Install and tighten the four screws (1) attaching the E-shifter (2) to the lower center stack.

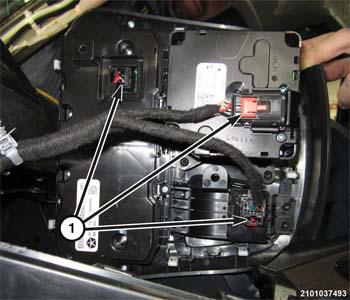

    Fig 2: Wire Harness Connectors At Lower Center Stack
    GC0162691Courtesy of CHRYSLER GROUP, LLC
  3. Connect all electrical connectors (1) to the back of the lower center stack.

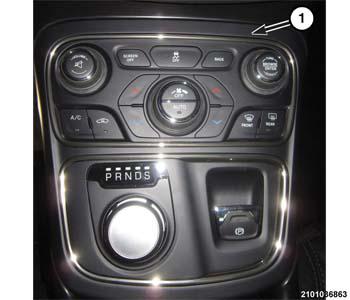

    Fig 3: Lower Center Stack At Center Floor Console
    GC0162890Courtesy of CHRYSLER GROUP, LLC
  4. Install the lower center stack (1) into the center floor console.
  5. Connect the negative battery cable.
  6. Verify operation of the E-shifter.
