Sensor, Camshaft Position: Removal: 2.4L

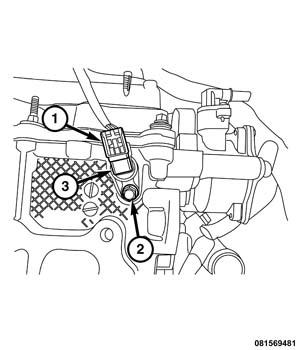

GC0156125Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Disconnect electrical connector at sensor (1).
  3. Remove mounting bolt (2).
    GC0082375Courtesy of CHRYSLER GROUP, LLC
  4. Remove the exhaust cam sensor (3).
