Engine Specifications







SPECIFICATIONS

GENERAL SPECIFICATIONS











CYLINDER BLOCK

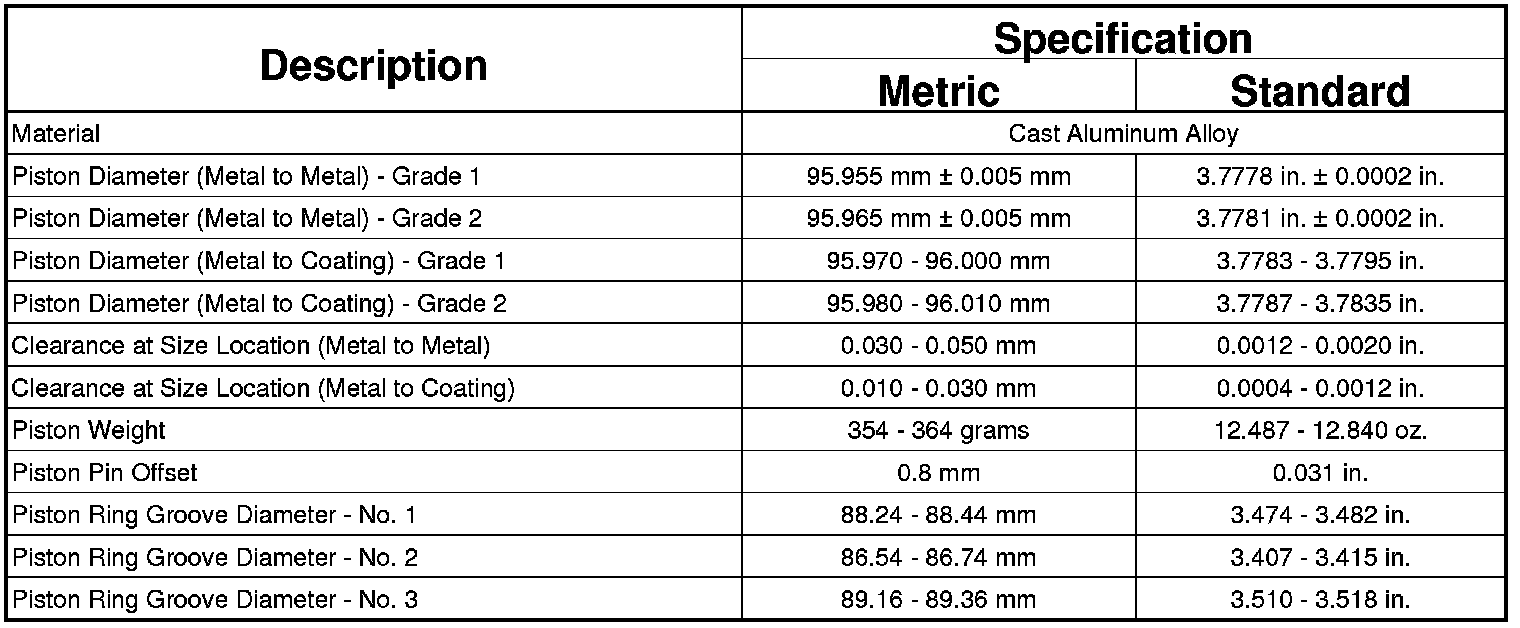

PISTONS






PISTON PINS






PISTON RINGS






PISTON RING SIDE CLEARANCE






PISTON RING WIDTH






CONNECTING RODS






CRANKSHAFT MAIN BEARING JOURNALS






CONNECTING ROD JOURNALS






CAMSHAFT






VALVE TIMING-INTAKE VALVES











VALVE TIMING-EXHAUST VALVES











CYLINDER HEAD






VALVES











VALVE SPRING






OIL PRESSURE
