Front

FRONT

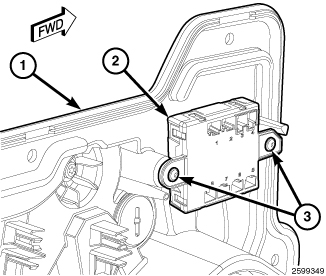

1. Disconnect and isolate the battery negative cable.
2. Remove the trim panel from the inside of the front door. Front Door Trim Panel - Removal.
3. Disconnect the electrical connectors from each of the front door control module (2) connector receptacles.
4. Remove the two screws (3) that secure the module to the front door hardware module carrier (1).
5. Remove the front door control module from the carrier.
