Intake Manifold






INTAKE MANIFOLD

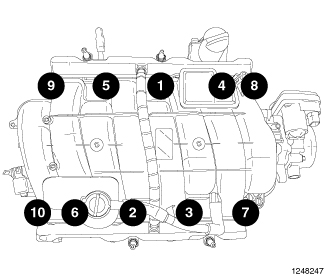

Install the intake manifold retaining bolts
Tighten 12 Nm (9 ft. lbs.).
