Park Assist Module - Installation






INSTALLATION

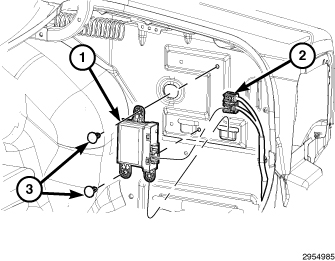

1. Position the park assist module (1) to the right inner panel, at the rear of the vehicle.
2. Install the push-pin type retainers (3).
3. Connect the body wire harness connectors (2) to the module connector receptacles.
4. Install the trim onto the right quarter inner panel. Trunk Welt - Installation.
5. Connect the negative battery cable.
