Rear Window Power Sunshade Switch - Installation





INSTALLATION - REAR

NOTE: Take the proper precautions to protect the face of the floor console panel from cosmetic damage while performing this procedure.

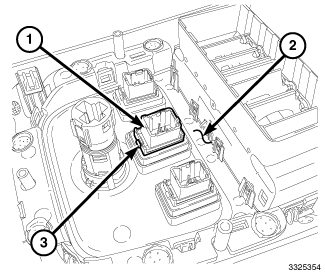

1. Align the tabs on each sunshade seat switch (1) with the openings in the floor console rear trim panel (2) and install the switch, as necessary. Push the switches firmly into the trim panel until the two retaining tabs (3) are fully engaged.
2. Install the trim panel onto the back of the center floor console. Be sure to connect any necessary electrical connectors and properly align the console ducts.
3. Connect the negative battery cable.
