Removal






3.5L

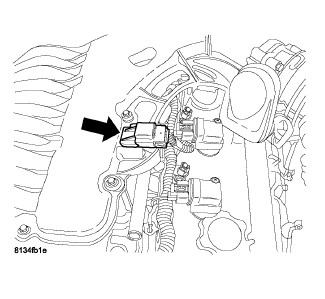

1. Sensor location.
2. Disconnect negative battery cable.

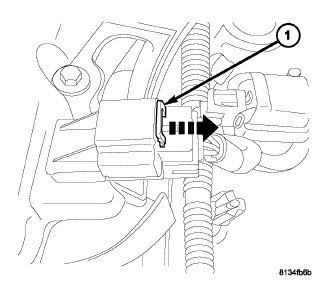

3. Unlock the electrical connector.





4. Disconnect the electrical connector.





5. Rotate sensor 1/4 turn clockwise.
6. Pull up on sensor.





7. Remove sensor.
