Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Power Distribution Center
>>
Front
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Front

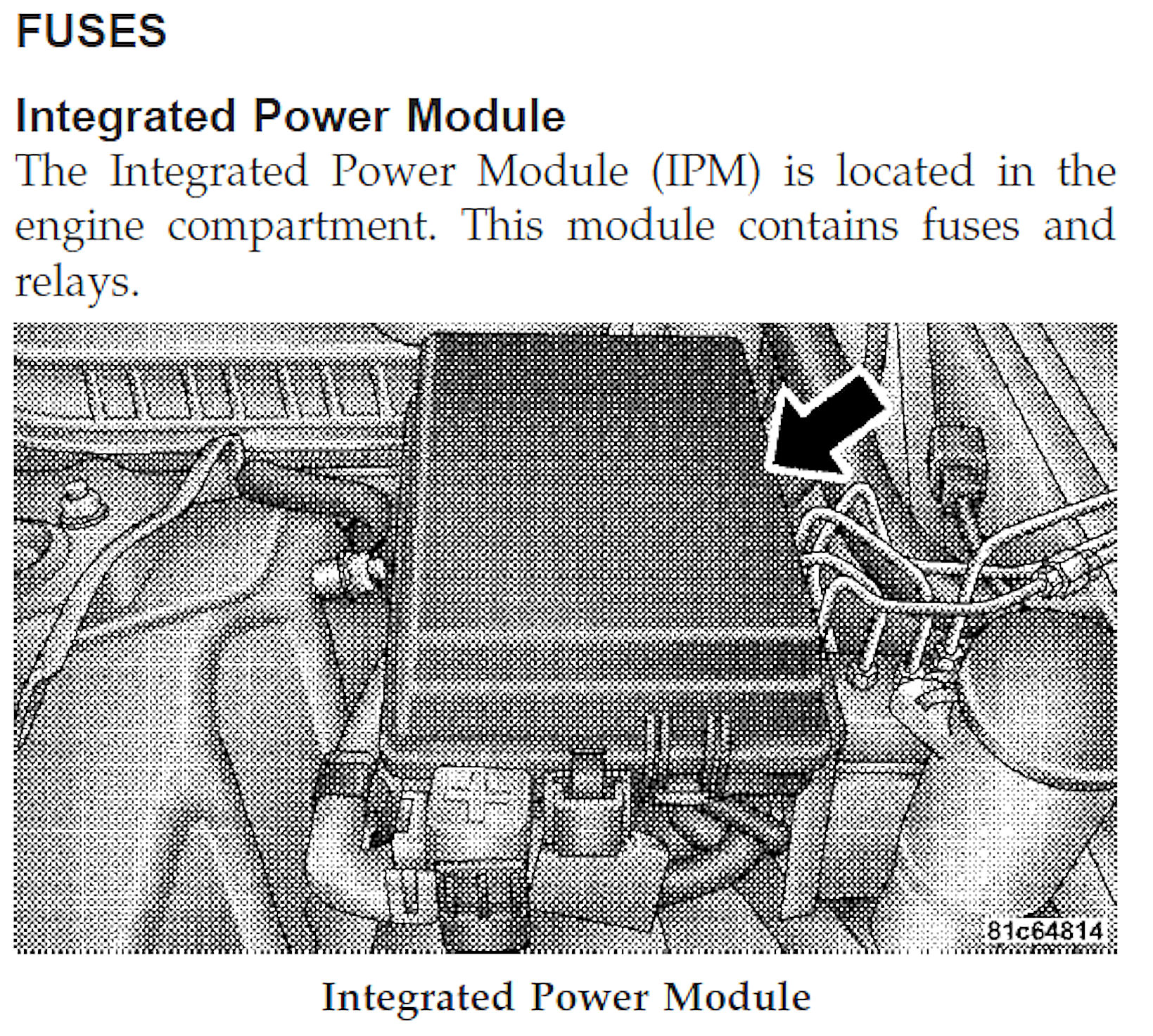

Location:

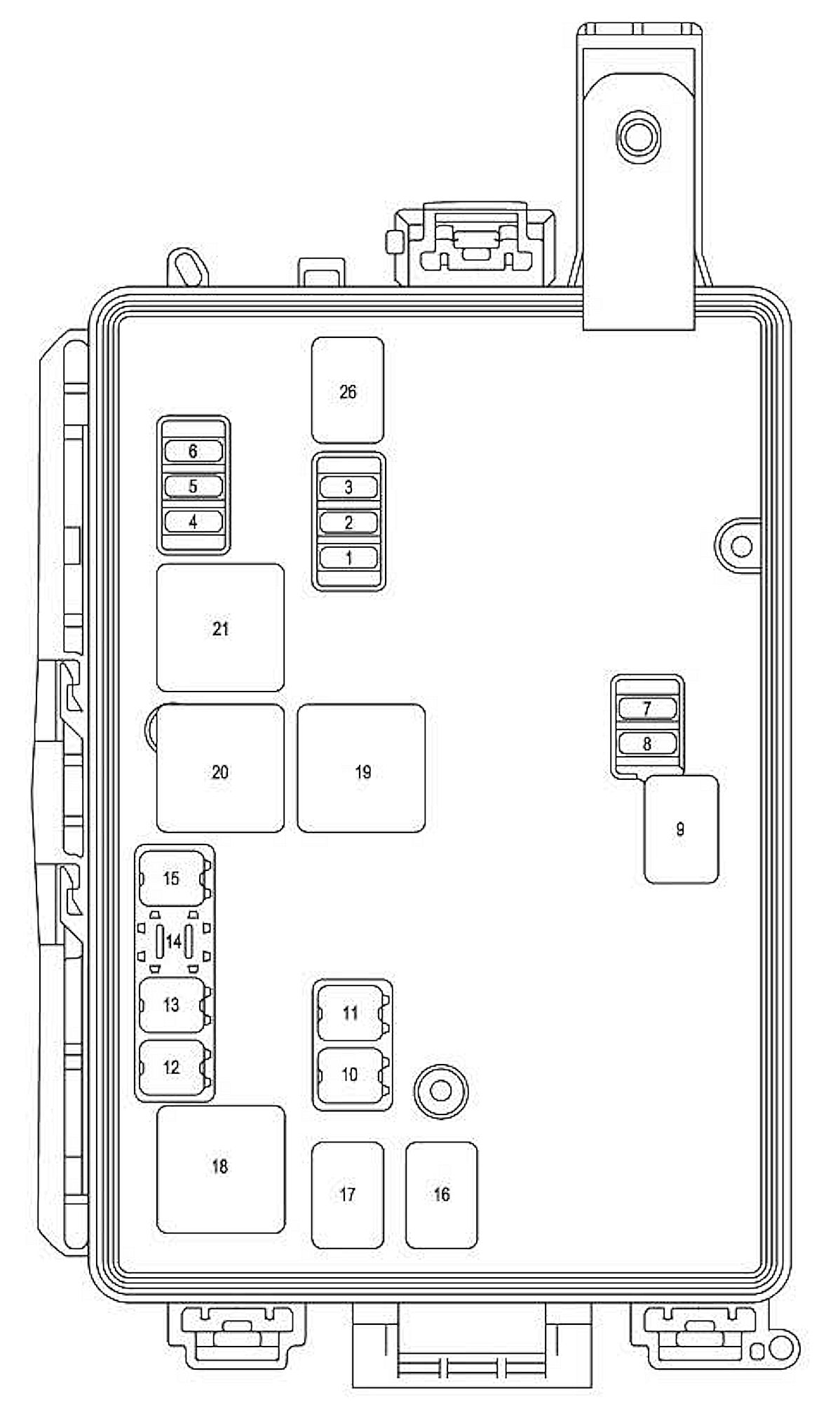

Integrated Power Module:

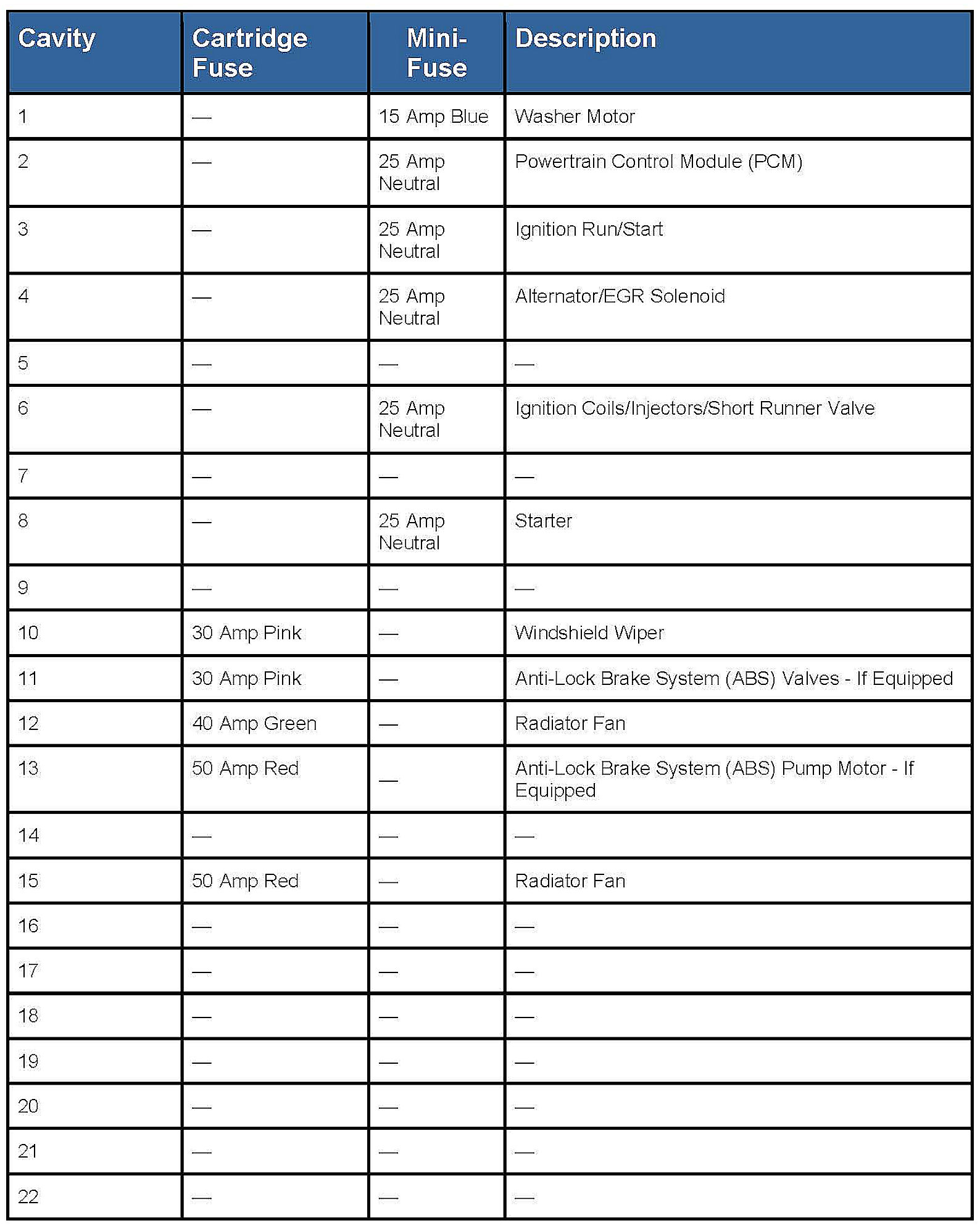

Fuse 1 - 22:
