Alignment

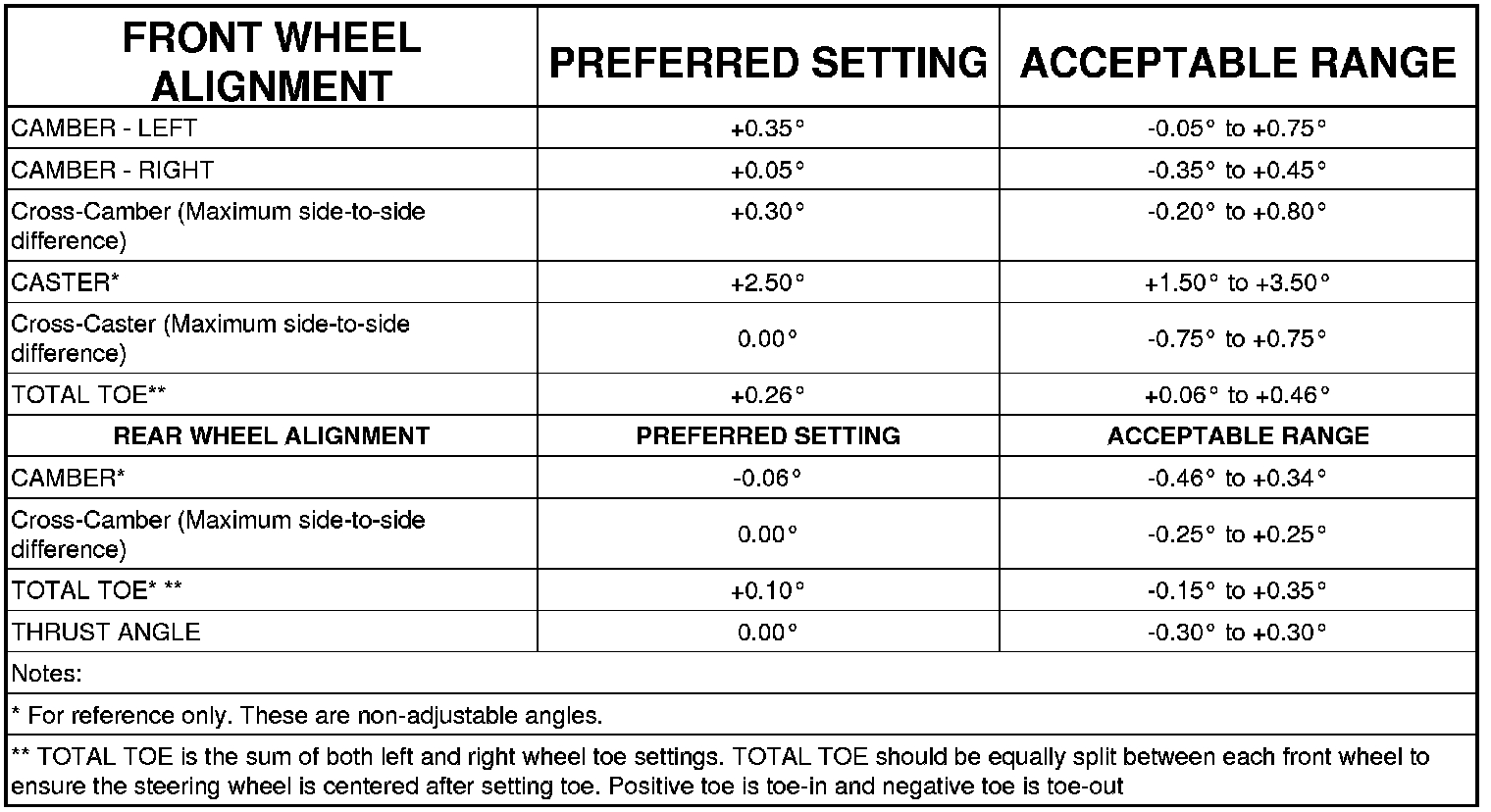

WHEEL ALIGNMENT

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set at curb height. Service and Repair






CURB HEIGHT SPECIFICATIONS
