Infrared Temperature Sensor - Installation

INSTALLATION

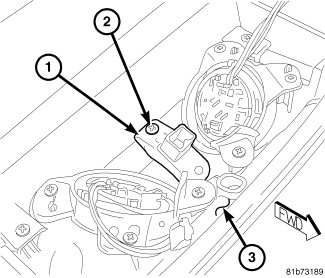

NOTE: Typical overhead console shown. Infrared sensor location may vary by model.

1. Position the infrared sensor (1) onto the back side of the front overhead console (3). Align the slot on the front of the sensor with the tab on the console.
2. Install the screw (2) that secures the infrared sensor to the overhead console. Tighten the screw to 1.2 Nm (10 in. lbs).
3. Install the front overhead console.
4. Reconnect the negative battery cable.
