Totally Integrated Power Module C1 50 Way






Connector C1 - (POWERTRAIN) 50 WAY

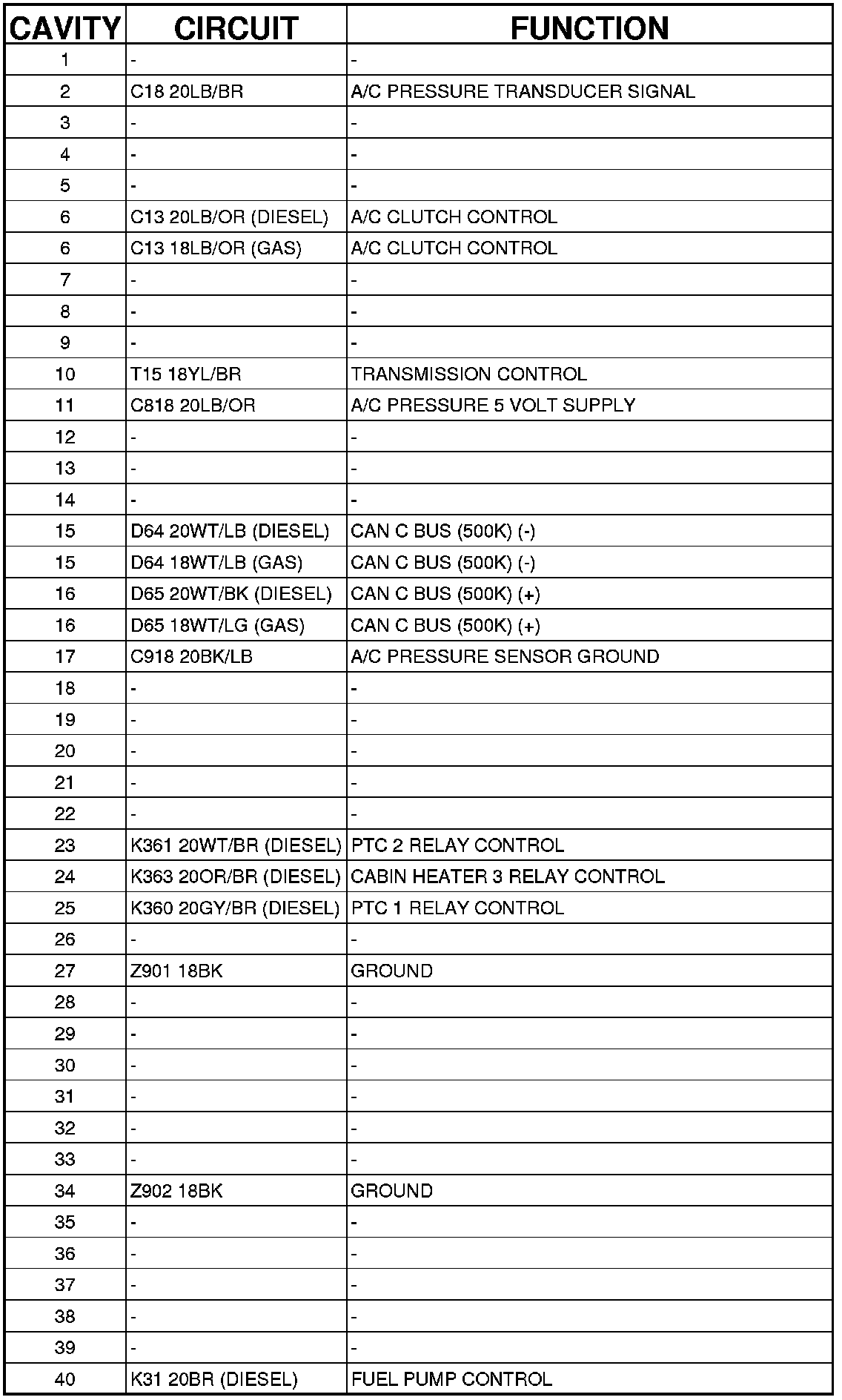

C1 TIPM - (POWERTRAIN) 50 WAY
