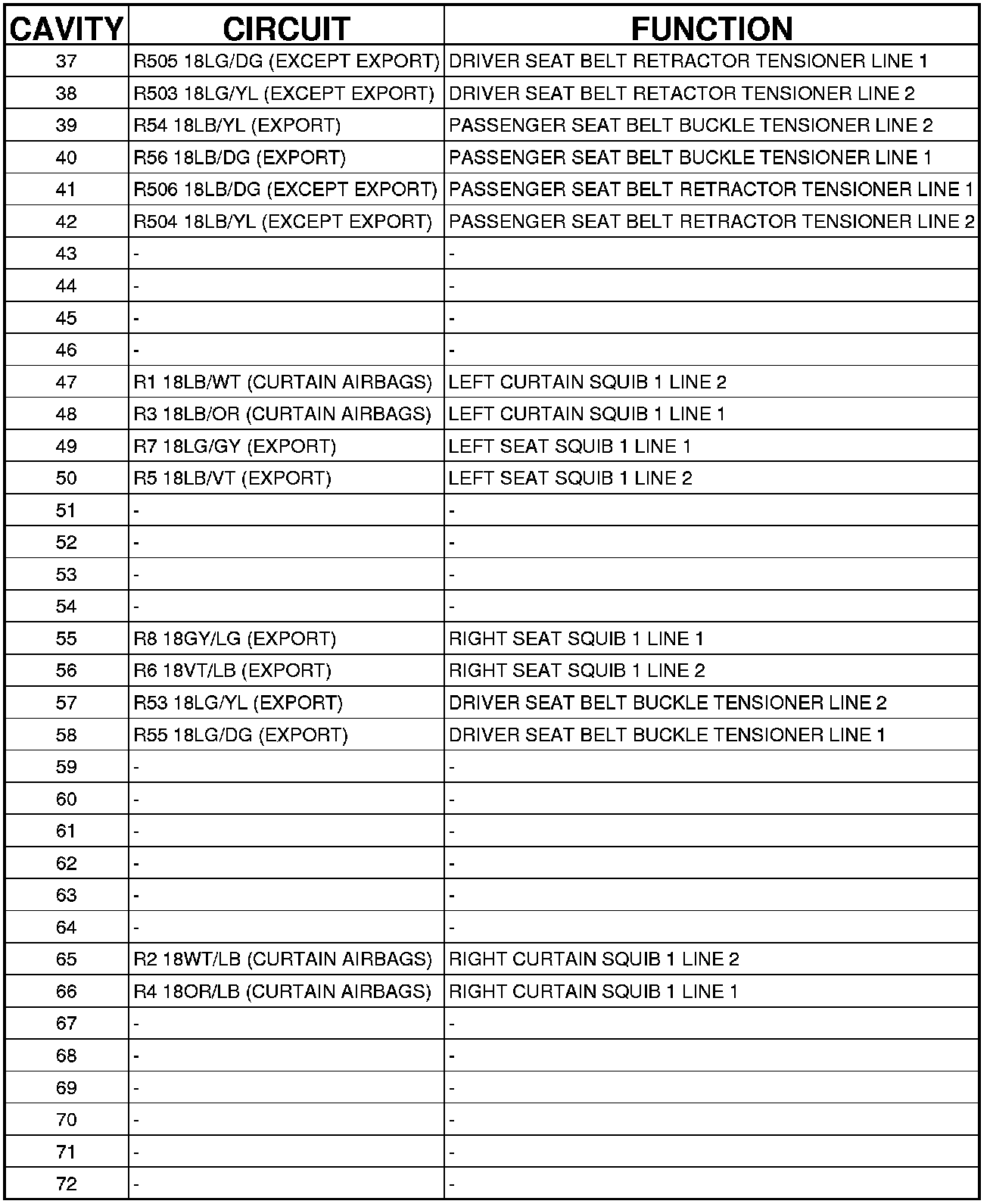

Module - Occupant Restraint Controller C1-B






Connector - (BODY) 36 WAY




MODULE-OCCUPANT RESTRAINT CONTROLLER - (BODY) 36 WAY
