P2111-Electronic Throttle Control System - Unable To Close: Notes

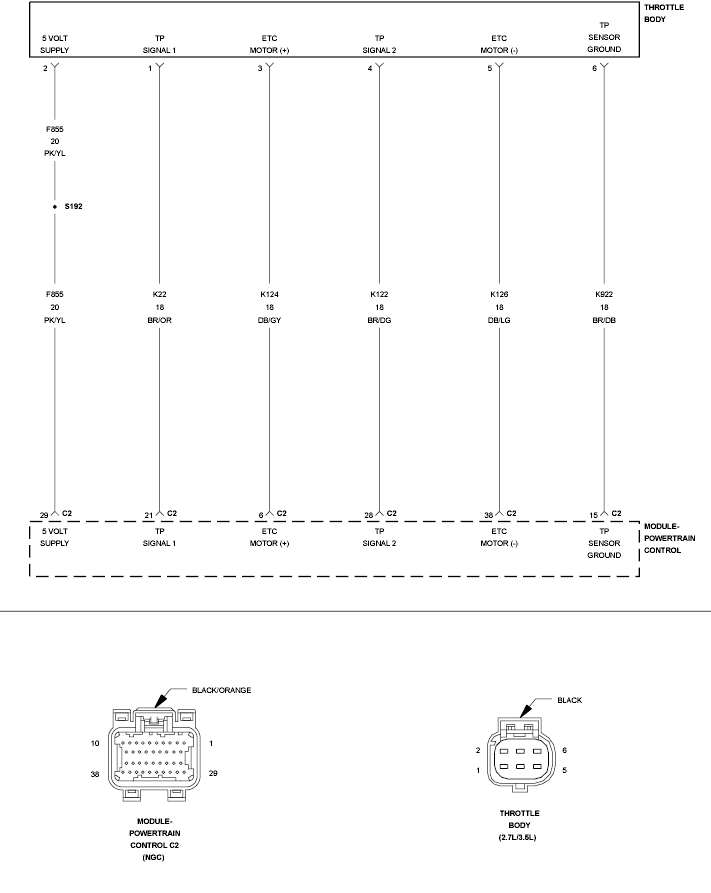

Fig 1: Throttle Position Sensor Circuit
GC0123888Courtesy of CHRYSLER LLC
