P2017-Short Runner Valve (SRV) Position Sensor Circuit High: Notes

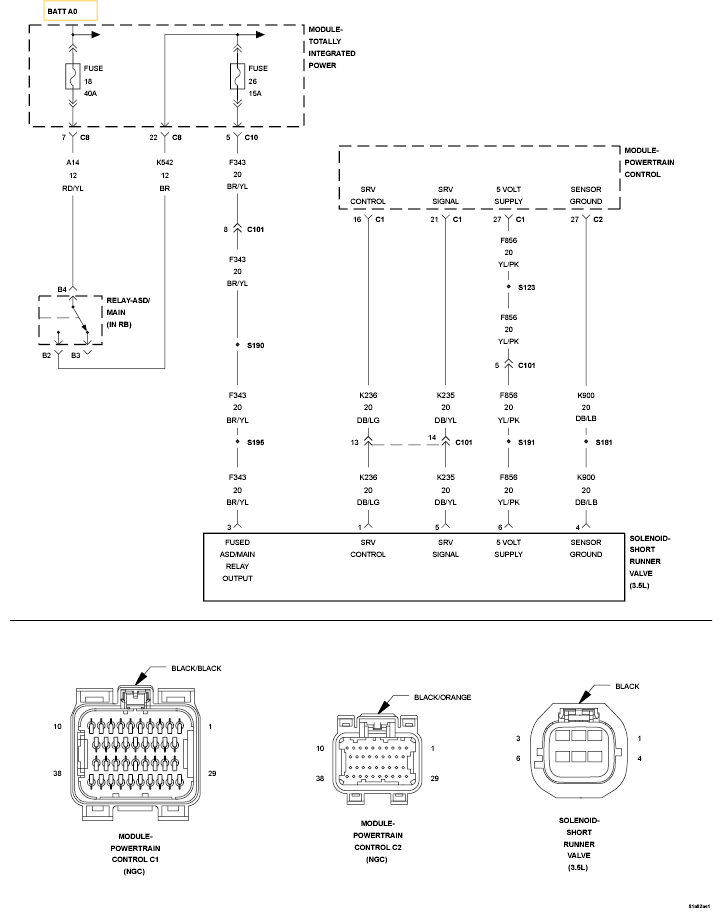

Fig 1: Short Runner Valve (SRV) Control Circuit
GC0123942Courtesy of CHRYSLER LLC
