Engine Block Heater - Installation

3.5L










1. Thoroughly clean cylinder block heater cavity.

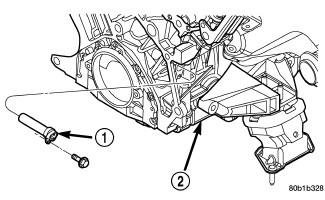

2. Insert heater assembly into block such that mounting hole is located below heater terminals.
3. Install mounting screw and tighten to 12 Nm (105 in. lb.).

CAUTION: To prevent damage, the power cord must be secured in its retainer clips, and not positioned so it could contact linkages or exhaust manifolds.

4. Attach power cord to heater.
5. Lower vehicle.
