Ignition Capacitor 1st

2.7L 1st

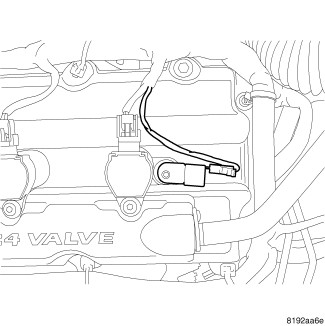

IGNITION COIL CAPACITOR - 2.7L
1. Install ignition coil capacitor and nut.
2. Tighten nut to 10 Nm (88.5 in. lbs.).
3. Attach electrical connector to capacitor.
4. Connect negative battery cable and tighten nut to 5 Nm (45 in. lbs.).
