Ambient Temperature Sensor - Installation






INSTALLATION

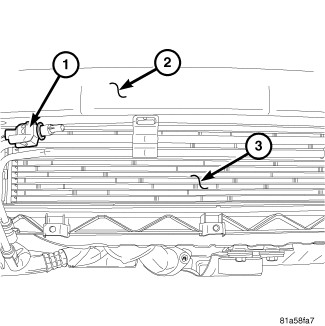

1. Working through the opening in the right side of the front fascia, position the ambient temperature sensor (1) in the vehicle.
2. Install the fastener that secures the ambient temperature sensor (1) to the power steering line bracket.
3. Connect the wire harness connector to the ambient temperature sensor.
4. Connect the battery negative cable.
