Valve Body: Assembly: Assembly

NOTE: Cleanliness through entire disassembly and assembly of the valve body cannot be overemphasized. When disassembling, each part should be washed in a suitable solvent, then dried by compressed air. Do not wipe parts with shop towels. All mating surfaces in the valve body are accurately machined; therefore, careful handling of all parts must be exercised to avoid nicks or burrs.

NOTE: If valve body assembly is reconditioned, the PCM/TCM Quick Learn Procedure must be performed. Refer to Electrical/Electronic Control Modules/MODULE, Powertrain Control - Standard Procedure .

Fig 1: Valve Body Spring & Valve Locations

Courtesy of CHRYSLER LLC

1 - VALVE BODY	5 - MANUAL VALVE
2 - T/C REGULATOR VALVE	6 - CONVERTER CLUTCH SWITCH VALVE
3 - L/R SWITCH VALVE	7 - SOLENOID SWITCH VALVE
4 - CONVERTER CLUTCH CONTROL VALVE	8 - REGULATOR VALVE

Install valves and springs.

Fig 2: Remove/Install Regulator Valve Spring Retainer using Tool 6302
Courtesy of CHRYSLER LLC

1 - REMOVER/INSTALLER 6302

2 - RETAINER
Install regulator valve spring retainer (2) using remover/installer 6302 (1).

Fig 3: Remove/Install Dual Retainer Plate using Tool 6301
Courtesy of CHRYSLER LLC

1 - REMOVER/INSTALLER 6301

2 - RETAINER
Install dual retainer plate (2) using remover/installer 6301 (1).

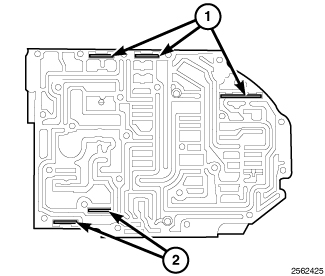

Fig 4: Valve Retainer Location
Courtesy of CHRYSLER LLC

1 - RETAINER

2 - RETAINER
Verify that all retainers are installed (1,2). Retainers should be flush or below valve body surface.

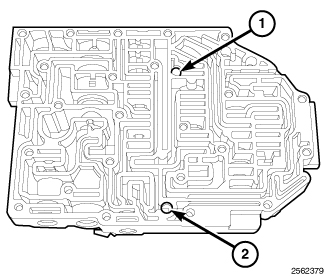

Fig 5: Valve Body Check Balls
Courtesy of CHRYSLER LLC

1 - (#4) REVERSE CHECK BALL

2 - (#5) (#3 ) L/R CHECK BALL
Install check balls (1 and 2) into position as shown in illustration. If necessary, secure them with petrolatum or transmission assembly gel for assembly ease.

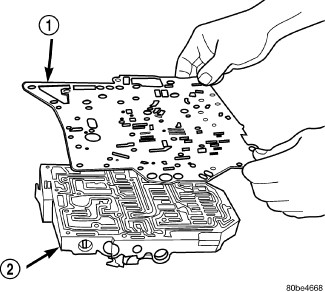

Fig 6: Remove/Install Separator Plate
Courtesy of CHRYSLER LLC

1 - SEPARATOR PLATE

2 - VALVE BODY
Install separator plate (1) to valve body (2).

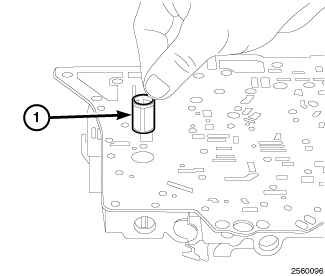

Fig 7: Oil Screen
Courtesy of CHRYSLER LLC
Install oil screen (1) to separator plate.

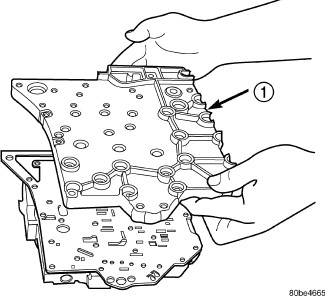

Fig 8: Remove/Install Transfer Plate
Courtesy of CHRYSLER LLC

1 - TRANSFER PLATE

Install transfer plate (1) to valve body and separator plate.

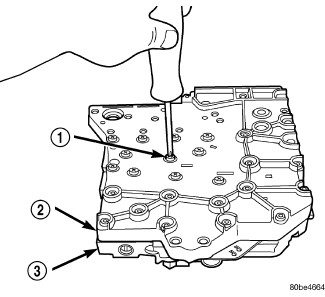

Fig 9: Remove/Install Valve Body to Transfer Plate Screws

Courtesy of CHRYSLER LLC

1 - SCREW (24)

2 - TRANSFER PLATE

3 - VALVE BODY

Install twenty-four transfer plate to valve body screws (1) and torque to 5 N.m (45 in. lbs.).

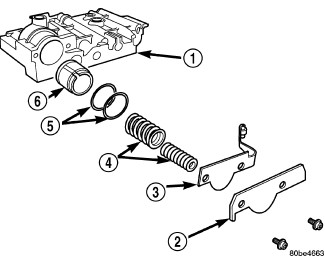

Fig 10: 2/4 Accumulator Assembly

Courtesy of CHRYSLER LLC

1 - VALVE BODY

2 - RETAINER PLATE

3 - DETENT SPRING

4 - SPRINGS

5 - SEALS

6 - PISTON

Install 2/4 Accumulator components (2,3,4,5 and 6).

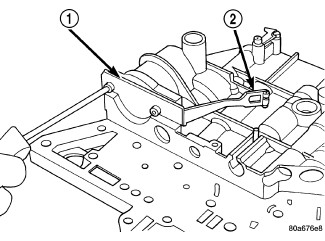

Fig 11: 2/4 Accumulator Retaining Plate
Courtesy of CHRYSLER LLC

1 - 2-4 ACCUMULATOR RETAINING PLATE

2 - DETENT SPRING

Torque 2/4 Accumulator retainer (1) to 5 N.m (45 in. lbs.).

Fig 12: Manual Shaft/Rooster Comb and Transmission Range Sensor

Courtesy of CHRYSLER LLC

1 - TRANSMISSION RANGE SENSOR

2 - MANUAL SHAFT/ROOSTER COMB

3 - ROOSTER COMB

Install Manual Shaft/Rooster Comb (3) and Transmission Range Sensor (1).

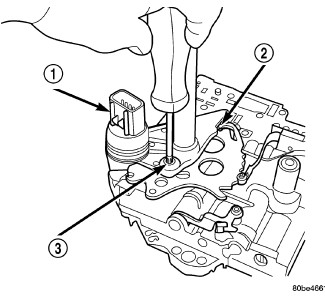

Fig 13: Remove/Install Transmission Range Sensor

Courtesy of CHRYSLER LLC

1 - TRANSMISSION RANGE SENSOR

2 - MANUAL VALVE CONTROL PIN

3 - RETAINING SCREW

Make sure Manual Valve control pin (2) is contained within the rooster comb slot. Install Transmission Range Sensor retaining screw (3) and torque to 5 N.m (45 in. lbs.).

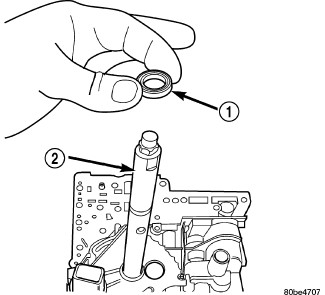

Fig 14: Manual Shaft Seal
Courtesy of CHRYSLER LLC

1 - SEAL

2 - MANUAL SHAFT
Install manual shaft seal (1).
