P0882-TCM Power Input Low: Notes

WARNING: This page is about a different variant/trim than selected.

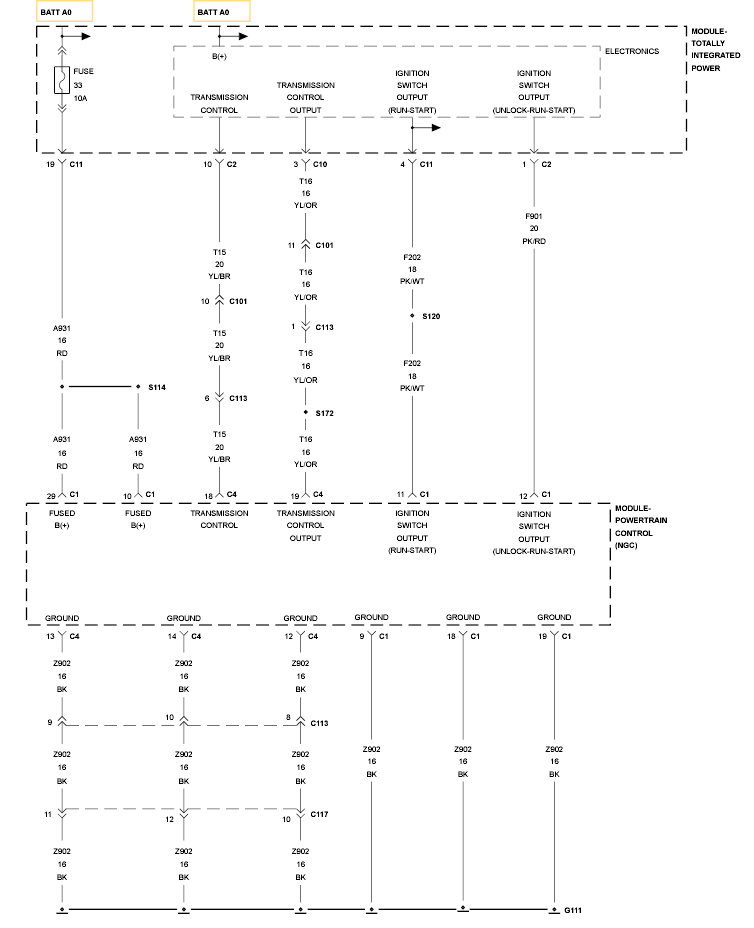

Fig 1: TCM Power Control Circuit
GC0124073Courtesy of CHRYSLER LLC
