P2122-Accelerator Pedal Position Sensor 1 Circuit Low: Notes

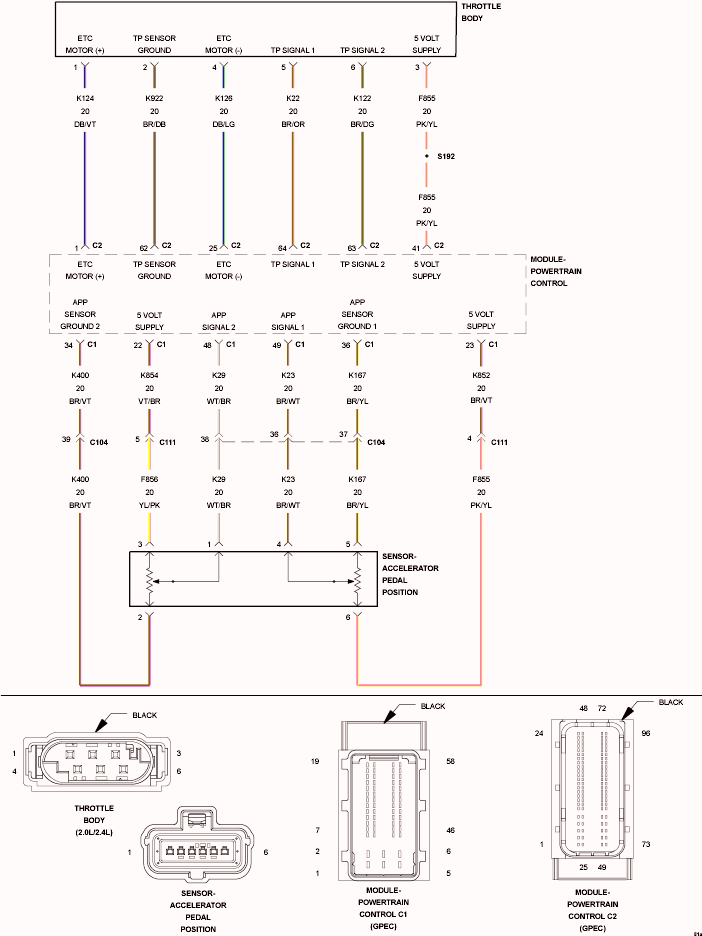

Fig 1: Accelerator Pedal Position Sensor Circuit
GC0123868Courtesy of CHRYSLER LLC
