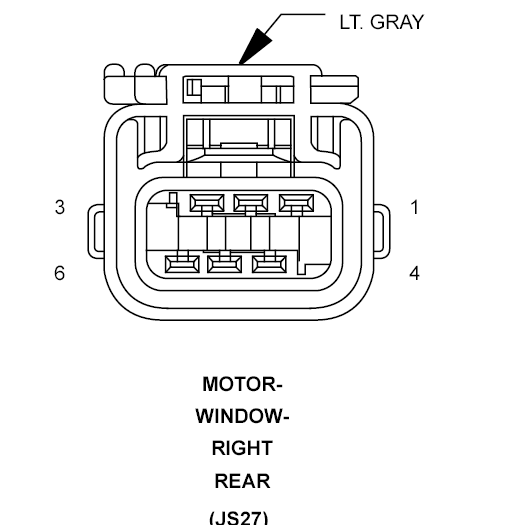

Right Rear Window Motor (Convertible) Connector End View
MOTOR-WINDOW-RIGHT REAR - LT. GRAY 6 WAY (JS27)
| CAV | CIRCUIT | FUNCTION |
| 1 | Q992 20BK/GY | REAR WINDOW MOTOR RETURN |
| 2 | Q310 20GY/OR | RIGHT REAR WINDOW HALL SENSOR B SIGNAL |
| 3 | Q212 14OR/VT | RIGHT REAR WINDOW DRIVER (DOWN) |
| 4 | Q316 20OR/TN | RIGHT REAR WINDOW HALL SENSOR SUPPLY |
| 5 | Q308 20OR/GY | RIGHT REAR WINDOW HALL SENSOR A SIGNAL |
| 6 | Q112 14OR/BR | RIGHT REAR WINDOW DRIVER (UP) |
