Inline Connector End View (C314 )

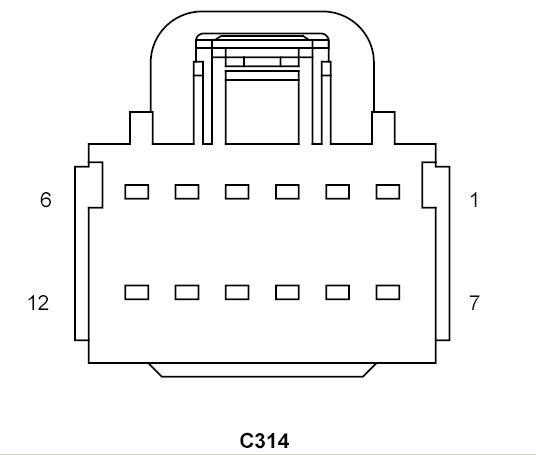

C314 - 12 WAY FEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z915 18BK	GROUND (HEATED SEATS EXCEPT ABS)
2	-	-
3	-	-
4	-	-
5	-	-
6	R262 20WT/LB	PASSENGER SEAT POSITION SENSOR DATA (EXCEPT EXPORT)
7	P188 18LG/VT	RIGHT SEAT HEATER B(+) DRIVER (LHD HEATED SEATS EXCEPT ABS)
7	P187 18LG/BR	LEFT SEAT HEATER B(+) DRIVER (RHD HEATED SEATS EXCEPT ABS)
8	-	-
9	-	-
10	-	-
11	-	-
12	R264 20VT/LB	PASSENGER SEAT POSITION SENSOR VOLTAGE (EXCEPT EXPORT)

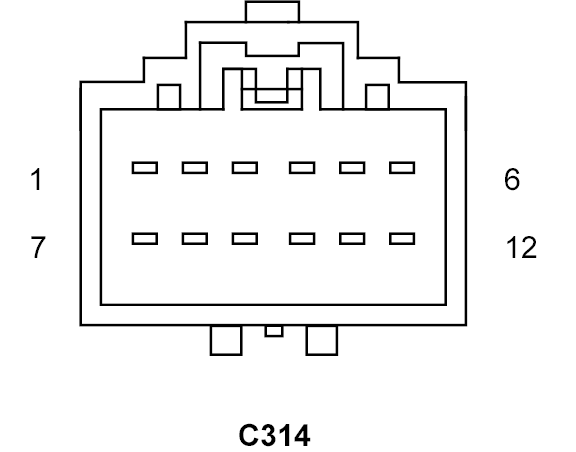

C314 - 12 WAY MALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z915 20BK	GROUND (HEATED SEATS)
2	-	-
3	-	-
4	-	-
5	-	-
6	R262 20WT/LB	PASSENGER SEAT POSITION SENSOR DATA
7	P188 18LG/VT	RIGHT SEAT HEATER B(+) DRIVER (LHD HEATED SEATS)
7	P187 18LG/BR	LEFT SEAT HEATER B(+) DRIVER (RHD HEATED SEATS)
8	-	-
9	-	-
10	-	-
11	-	-
12	R264 20VT/LB	PASSENGER SEAT POSITION SENSOR VOLTAGE
