Body & Frame
>>
Windows
>>
Driver Door Module (DDM) - Electrical Diagnostics
>>
DTC Troubleshooting
>>
U0208-Lost Communication With Heated Seats Control Module
>>
Circuit Schematic
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Schematic

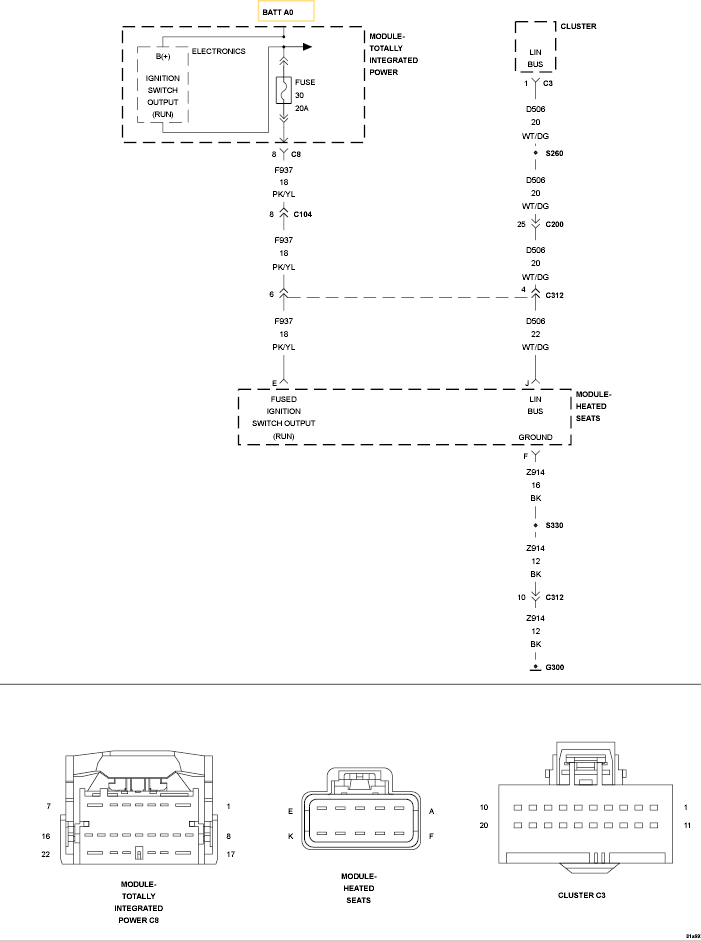

Fig 1: Lost Communication With Heated Seats Control Module Schematic
