Blower Motor Connector End View

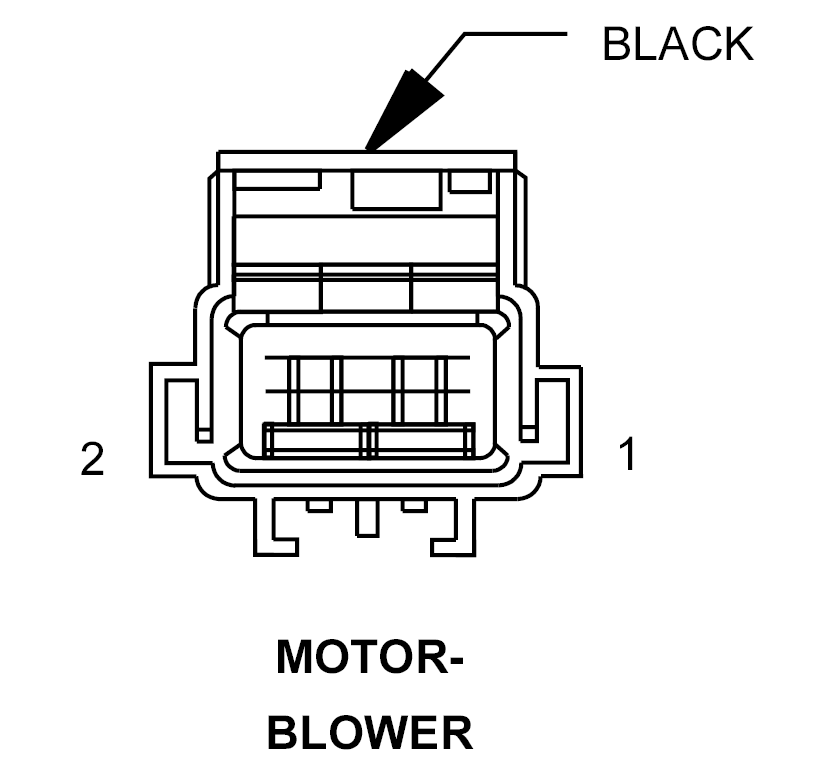

MOTOR-BLOWER - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
C7 14DB
BLOWER MOTOR CONTROL
2
C70 14DB/YL
BLOWER MOTOR HIGH SPEED
Courtesy of CHRYSLER CORP.
