Fuel Injector 2 (Diesel) Connector End View

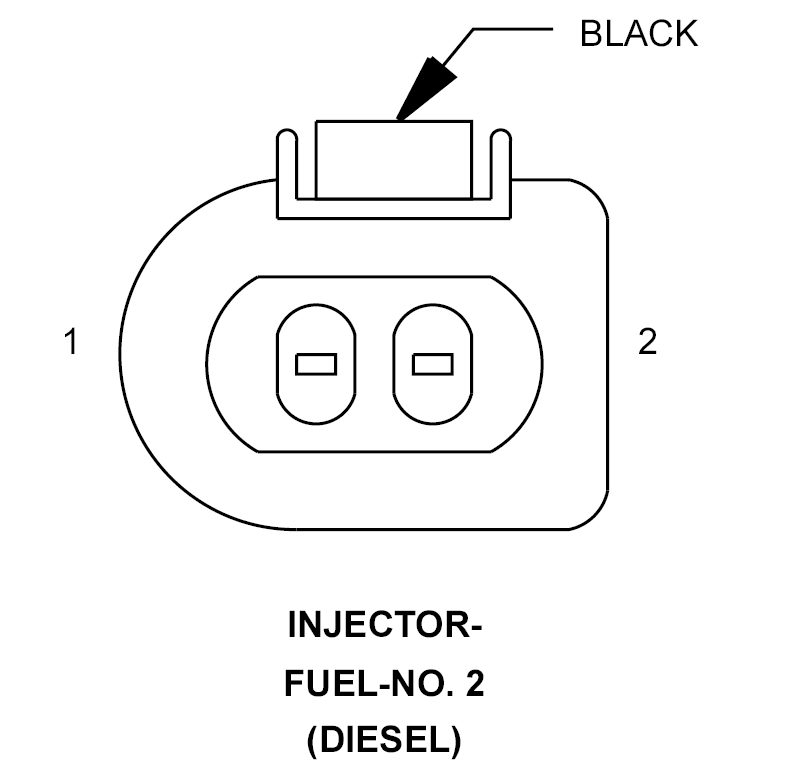

INJECTOR-FUEL-NO. 2 - BLACK 2-WAY (DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K12 16BK/VT |
FUEL INJECTOR NO. 2 LOW-SIDE CONTROL |
| 2 |
K612 16VT |
FUEL INJECTOR NO. 2 HIGH-SIDE CONTROL |
