Oil Pressure Sensor - Installation

INSTALLATION

NOTE: Apply Mopar(R) Thread Sealant with PTFE to the sensor threads before installing into the engine block.

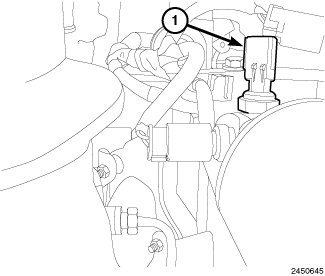

1. Install the oil pressure sensor (1).

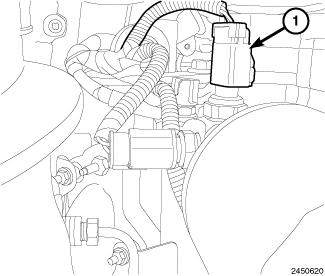

2. Connect the oil pressure sensor electrical connector (1).
3. Lower the vehicle.
4. Connect the negative battery cable.
