Sun Sensor - Installation






INSTALLATION

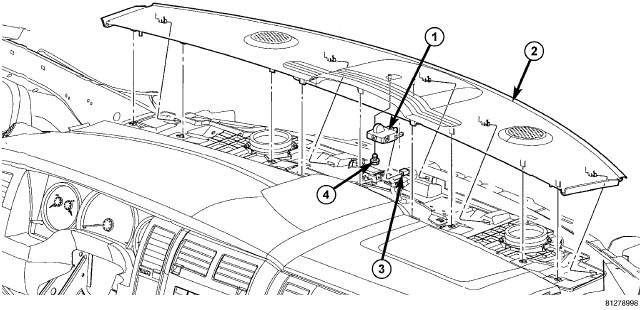

1. Position the sun sensor assembly (1) to the bottom of the defroster grill (4) and install the retaining screw (4). Tighten the screw securely.
2. Connect the wiring harness connector (3) to the sun sensor assembly.
3. Install the defroster grille Defroster Grille - Installation.
4. Reconnect the negative battery cable.
