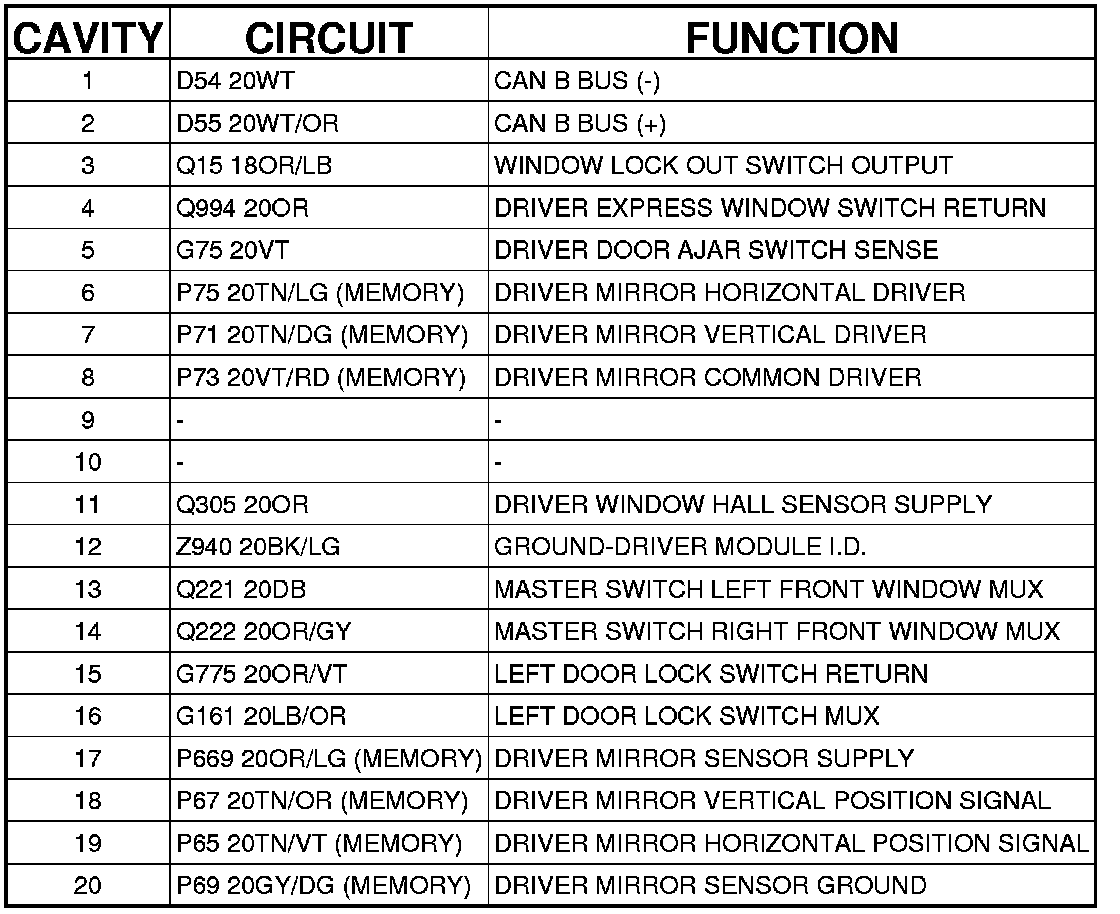

Driver Door Module C2 (Front Driver Door) 20 Way
Connector C2 - (FRONT DRIVER DOOR) 20 WAY
MODULE-DOOR-DRIVER - (FRONT DRIVER DOOR) 20 WAY
