Hood Sensor/Switch (For Alarm)

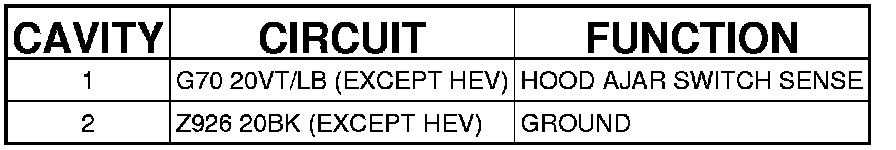

Connector - (HEADLAMP AND DASH) 2 WAY




SWITCH-HOOD AJAR - (HEADLAMP AND DASH) 2 WAY
