Power Window Switch - Removal






REMOVAL






NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected. Battery Reconnection .

1. Disconnect and isolate the battery negative cable.
2. Remove rear door trim panel Rear Door Trim Panel - Removal.

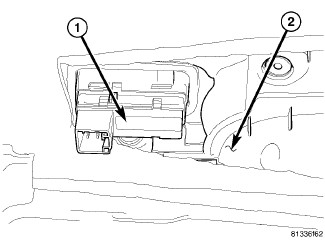

3. Remove switch (1) from door trim panel (2).
