Engine Torque Specifications

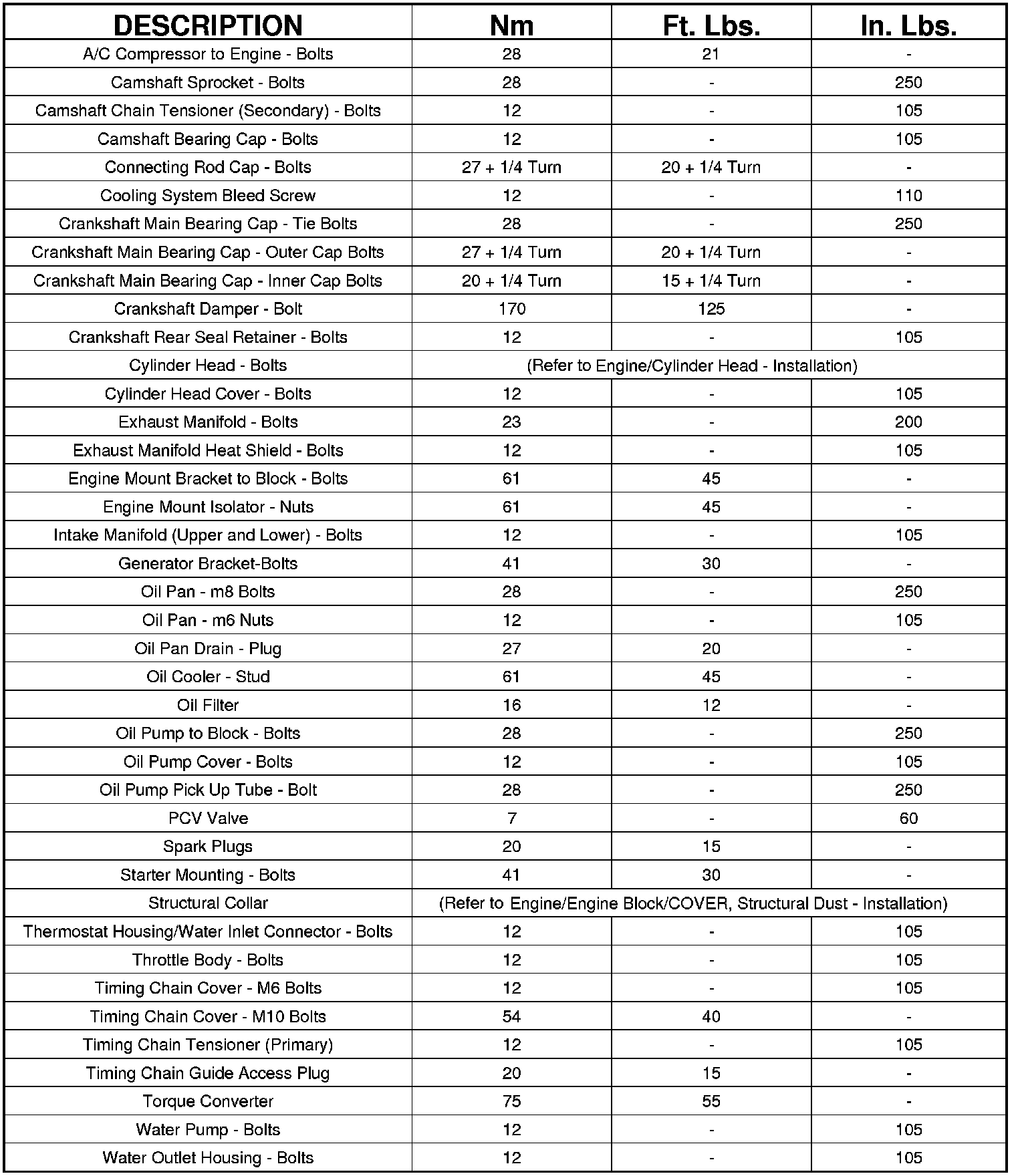

TORQUE

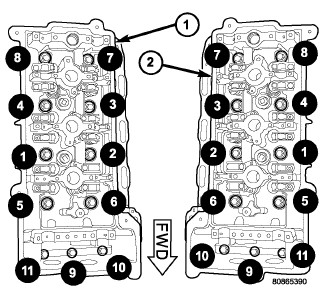

Cylinder Head Torque





Step 1: Bolts 1-8 48 Nm (35 ft. lbs.)
Step 2: Bolts 1-8 75 Nm (55 ft. lbs.)
Step 3: Bolts 1-8 75 Nm (55 ft. lbs.)
Step 4: Bolts 1-8 +90° Turn Do not use a torque wrench for this step.
Step 5: Bolts 9-11 28 Nm (250 in. lbs.)


Head Bolt Reuse/Replace

NOTE: The cylinder head bolts are tightened using a torque plus angle procedure. The bolts must be examined BEFORE reuse. If the threads are necked down the bolts must be replaced

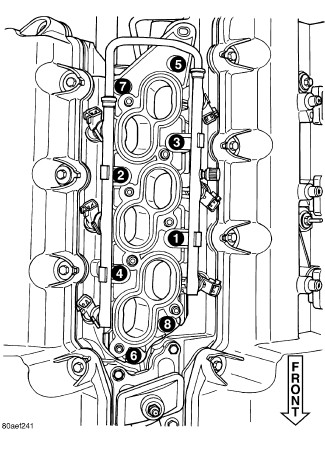

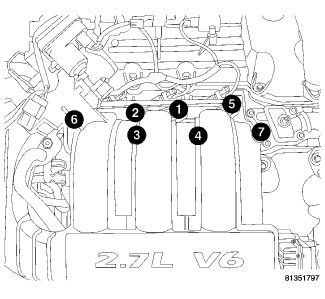

Intake Manifold Sequence

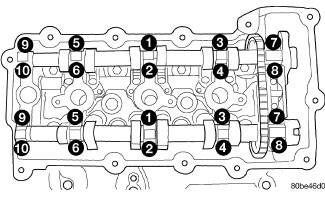

Camshaft Bearing Cap Sequence






Flywheel/Flex Plate Torque

Flex Plate to Crankshaft 95 Nm (70 ft. lbs)
