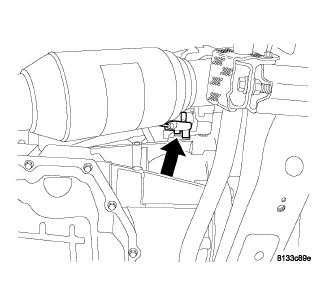

Crankshaft Position Sensor - Removal

2.7L





1. Disconnect negative battery cable.
2. Raise vehicle and support.





3. Unlock and disconnect the electrical connector.
4. Remove mounting bolt.
5. Remove sensor.
